Mastering Rolling Offsets: The 2026 Field Handbook & Formulas

In pipefitting, a simple offset is a challenge, but a Rolling Offset is where true craftsmanship and mathematical precision meet. A rolling offset occurs when a pipe changes direction in two planes at once—both vertically (rise) and horizontally (roll).

Getting this calculation wrong means wasted material, missed deadlines, and compromised system integrity. Here is the 2026 definitive guide to mastering the rolling offset in the field.

1. The Anatomy of a Rolling Offset

To calculate a rolling offset, you must first identify three key dimensions:

• Rise (H): The vertical distance between the centerlines of the two pipes.
• Roll (D): The horizontal distance between the centerlines.
• Set (S): The overall advance of the offset.

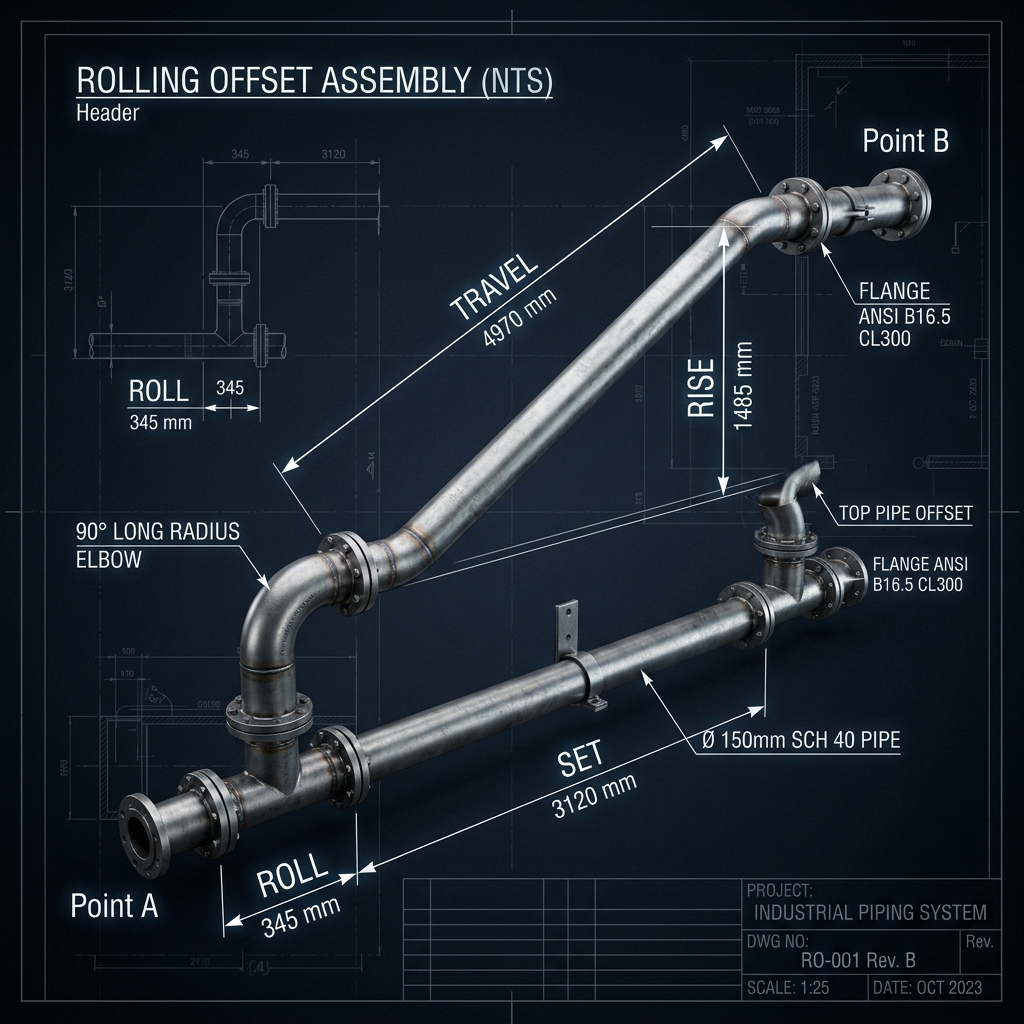

Visualizing the Rise, Set, and Roll is the first step to accurate travel calculations in 2026.

2. The Core Formulas

The mathematical foundation of a rolling offset is the Pythagorean Theorem applied in three dimensions.

Step 1: Calculate the "True Offset"

Before you can find the travel length, you must find the diagonal distance between the two points in a 2D plane: True Offset = sqrt(Rise² + Roll²)

Step 2: Calculate the "Travel Length"

Once you have the True Offset, you can calculate the Travel (the actual length of the pipe piece between the fittings): Travel = True Offset / sin(Fitting Angle) (For 45° fittings, multiply the True Offset by 1.4142)

3. Don't Forget the "Take-Off"

The most common mistake in the field is forgetting to subtract the Fitting Take-Off (the distance from the center of the fitting to the end of the fitting).

• Method: Subtract the take-off for both fittings from your calculated Travel length before you cut your pipe.
