Step-by-Step Pipe Dummy Leg Calculation and Support Design

Introduction to Pipe Dummy Leg Supports

In the world of industrial piping, structural integrity is paramount. One of the most effective ways to support a horizontal pipe line at a change in direction is by using a dummy leg support. A dummy leg is essentially an extension piece of pipe welded to a fitting—usually a long-radius elbow—which then rests on a structural member or a foundation. Understanding the precision required for pipe dummy leg calculation is vital for any pipefitter or lead engineer to ensure the system doesn't fail under stress.

Featured Snippet: Standard Dummy Leg Sizing

To maintain structural balance, choose the correct diameter for your dummy leg based on the main piping run. Use this reference table for standard industrial applications:

Main Pipe Size	Recommended Dummy Leg Size
4" (100mm)	3" (80mm)
6" (150mm)	4" (100mm)
8" (200mm)	6" (150mm)
12" (300mm)	8" (200mm)

1. The Geometry of the Support

Designing a dummy leg involves more than just welding a scrap piece of pipe to an elbow. You must calculate the exact length and the intersection point. If the dummy leg is too long, it will create unwanted leverage and stress on the main line. If it is too short, it won't reach the support beam. The center line of the dummy leg must align perfectly with the support structure to distribute the weight evenly.

2. Calculating the Dummy Leg Length

To calculate the length of a dummy leg welded to a 90-degree elbow, you need to know the center-to-face dimension of the elbow and the elevation of the support beam.

Calculation Tip: Always measure from the back of the elbow. If you are supporting a 6-inch pipe with a 4-inch dummy leg, the "fish-mouth" cut on the dummy leg must be calculated to match the outer diameter curvature of the elbow precisely. This ensures a gap-free weld and maximum structural strength.

3. Welding and Reinforcement Details

Since dummy legs are primary load-bearing components, the weld quality must be exceptional. Most industrial specifications require a full-penetration butt weld or a heavy fillet weld depending on the weight of the main line.

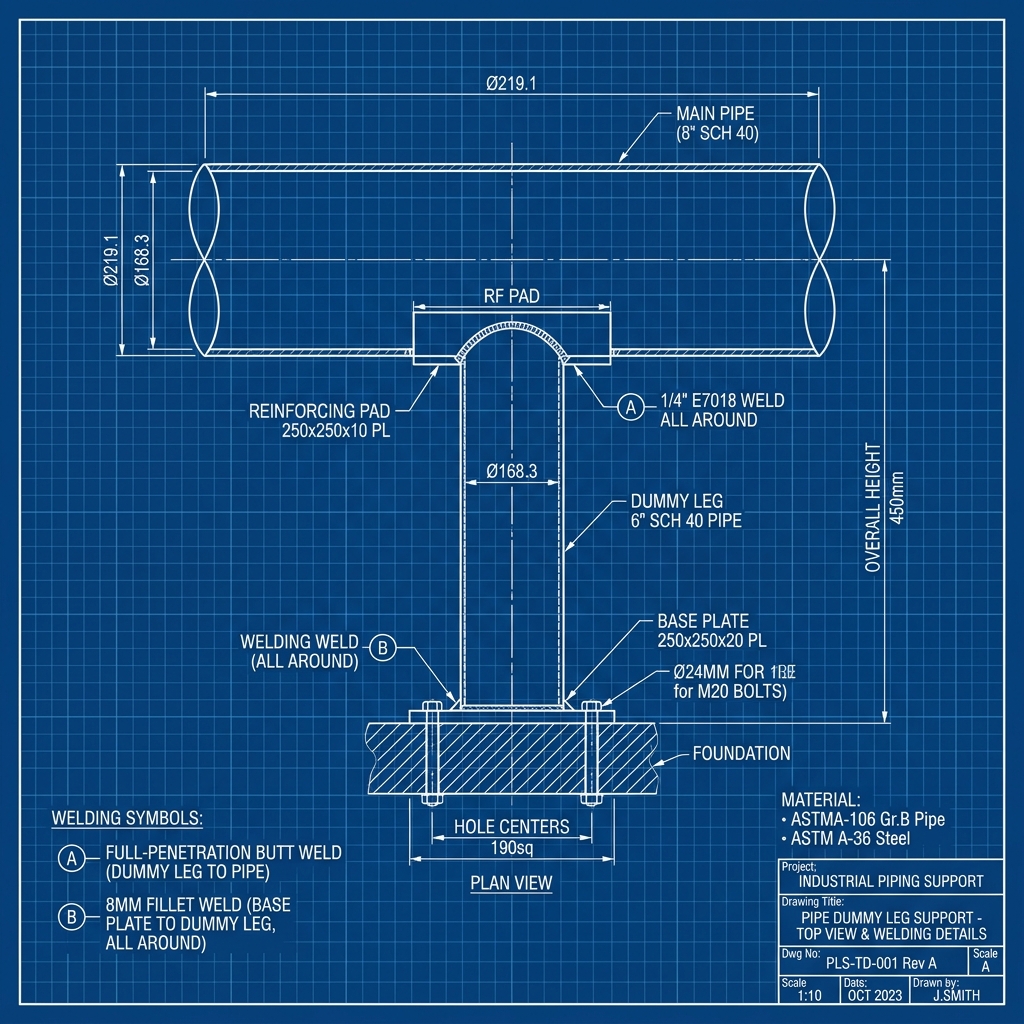

For larger diameter pipes (usually above 10 inches), it is common practice to use a Reinforcing Pad (RF Pad) at the intersection of the dummy leg and the main pipe. This pad distributes the load over a larger surface area of the main pipe, preventing localized stress fractures and wall thinning over time.

4. Avoiding Thermal Expansion Issues

One common mistake in dummy leg design is neglecting thermal expansion. If the main pipe carries hot fluids, it will expand and contract along its longitudinal axis. If the dummy leg is welded to a fixed support, the expansion force can tear the elbow apart or bend the support structure.

To prevent this, use a sliding shoe or a guided support at the base of the dummy leg. This allows the system to move slightly while still maintaining its vertical load-bearing capacity. For complex thermal stress analysis, professionals often utilize advanced tools like PipeFit Pro to verify support coordinates and ensure the entire piping run remains within safety limits.

Conclusion

মাস্টার (Mastering) the pipe dummy leg calculation ensures your piping systems are not only efficient but safe for long-term industrial operation. By selecting the right pipe size, calculating the geometry with precision, and accounting for thermal movements, you elevate your status from a simple installer to a skilled mechanical technician. Keep your blueprints clear and your welds strong.
