How to Read Isometric Piping Drawings Like a Pro

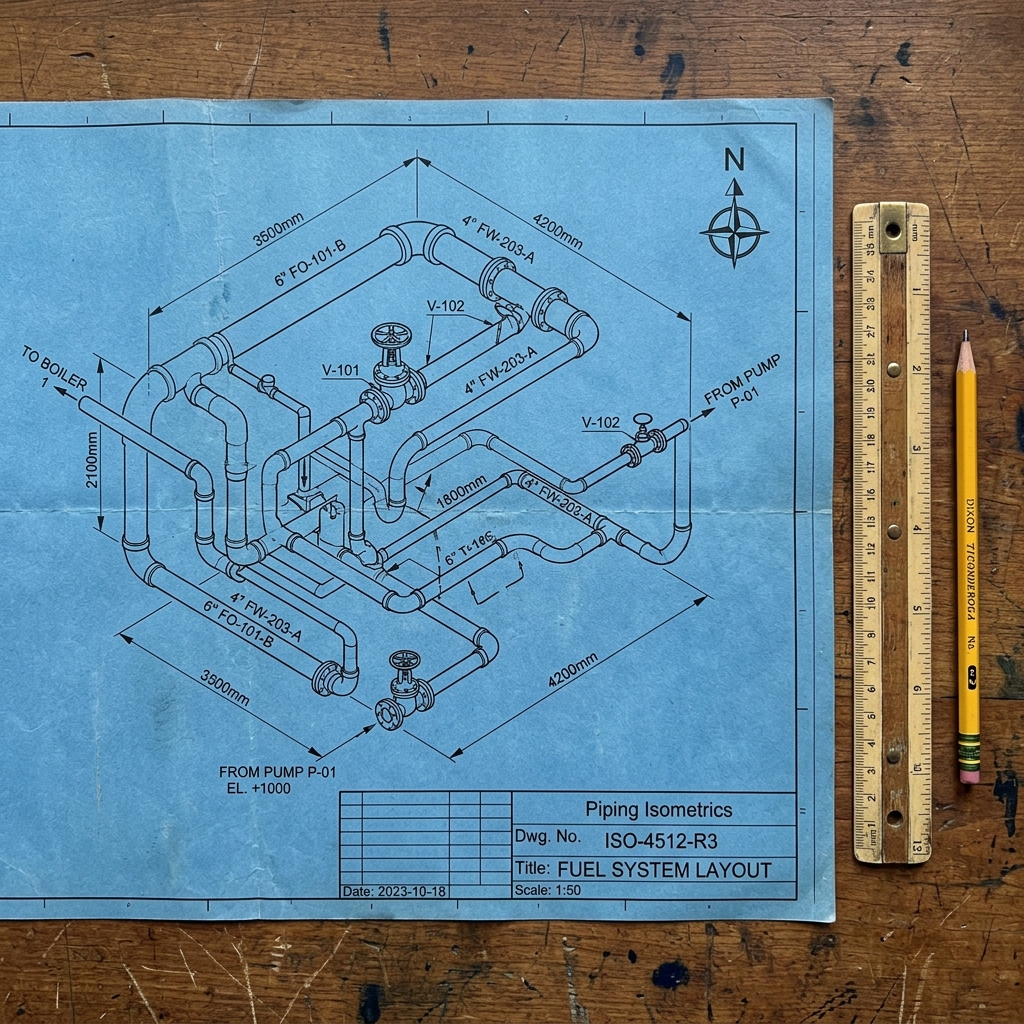

Introduction to Isometric Piping Drawings

For pipefitters, welders, and engineers, understanding how to interpret industrial blueprints is just as critical as operating the welding torch itself. One of the most important types of blueprints in mechanical construction is the isometric piping drawing. Unlike standard 2D orthographic projections, isometric drawings represent complex 3D piping systems on a single sheet of paper, providing essential spatial awareness that prevents costly fabrication errors.

Featured Snippet: Key Elements of an Isometric Drawing

If you want to read an isometric drawing accurately, you must familiarize yourself with these core elements:

• The North Arrow: Always indicates the orientation of the piping system relative to the plant's structural grid.
• Dimensional Lines: Specifies the exact cut lengths, center-to-center measurements, and elevations for fabrication.
• Piping Symbols: Standardized icons representing valves, flanges, elbows, and specialty fittings.
• Bill of Materials (BOM): A comprehensive table listing every component required to construct the spool.

1. Understanding the 30-Degree Axis

An isometric drawing is not a true 3D model; it is a 2D representation drawn using a specific set of axes. In standard piping isometrics, vertical lines remain vertical, but horizontal lines are drawn at 30-degree angles to the horizontal plane. This optical illusion effectively simulates depth, allowing fitters to visualize how the pipe turns South, East, or changes elevation.

2. The Power of the North Arrow

Before you look at any valve or dimension, locate the North Arrow on your blueprint. The North Arrow is the anchor of your orientation. It dictates the direction of the piping run. If a pipe line on the drawing runs parallel to the North Arrow, that pipe is running North-South in the real world. If it runs perpendicular, it is routing East-West. Misinterpreting the North Arrow is the quickest way to fabricate a mirror-image piping spool that will not fit in the field.

3. Deciphering Piping Symbols and Fittings

Every valve, flange, and change in direction is represented by an industry-standard symbol. For instance, a small triangle meeting another triangle at its point typically signifies a gate valve. A cross indicates a globe valve. Understanding these visual shorthand symbols allows you to quickly identify what materials need to be pulled from the inventory.

Moreover, the joints where these fittings connect are also critical. A solid black dot indicates a field weld, while a simple line break represents a shop or socket weld. Paying attention to these subtle markers ensures that the spool piece is fabricated according to the exact engineering specifications.

4. Taking Off Dimensions and Cut Lengths

Reading the dimensional lines allows you to calculate your cut lengths. The drawings will indicate the "Center-to-Center" measurements between fittings. As a professional pipefitter, you must remember to subtract the fitting take-offs (the physical space the elbows or flanges occupy) to determine the true length of the straight pipe needed.

For advanced calculations and to quickly determine complex rolling offsets from isometric drawings, many professionals rely on modern digital tools and mobile apps, such as PipeFit Pro, which streamline the math and reduce human error on the shop floor.

Conclusion

Mastering the art of reading isometric piping drawings takes practice and patience. By understanding the 30-degree axis, orienting yourself with the North Arrow, and memorizing standard symbols, you can tackle the most complex industrial mechanical systems with absolute confidence. Next time you unroll a blueprint, start with these fundamentals and you will be fabricating like a seasoned veteran.
