Common Pipe Materials: A Fitter's Guide to Selection

Navigating the World of Industrial Piping Materials

In the world of mechanical engineering and fabrication, the success of a piping system depends entirely on the material chosen for the job. Selecting from the variety of common pipe materials is not just about cost—it's about pressure ratings, temperature tolerances, and chemical compatibility. Whether you are building a high-pressure steam line or a residential drainage system, understanding the metallurgy and properties of your piping is the primary responsibility of a master fitter. This guide breaks down the essential materials used in modern industry.

Featured Snippet: Pipe Material Selection Table

Material	Common Standard	Key Property	Typical Use
Carbon Steel	ASTM A106 Grade B	High Strength	Steam, Oil, Gas
Stainless Steel	ASTM A312 TP304/316	Corrosion Resistance	Food, Pharma, Chemicals
Copper	ASTM B88	Thermal Conductivity	Domestic Water, HVAC
PVC / CPVC	ASTM D1785 / D2846	Chemical Inertness	Drainage, Low-temp fluids

1. Carbon Steel: The Industrial Workhorse

Carbon steel is by far the most widely used of all common pipe materials across the global energy and manufacturing sectors. Known for its exceptional tensile strength and durability, carbon steel (specifically ASTM A106) is the standard for high-pressure and high-temperature services. However, its primary weakness is oxidation (rust). To combat this in outdoor or water-centric environments, fitters often use "Galvanized Steel," which is carbon steel coated with a protective layer of zinc to extend its service life in harsh conditions.

2. Stainless Steel and Specialized Alloys

When a system involves corrosive chemicals, high-purity food products, or extremely low temperatures (cryogenic service), carbon steel is no longer an option. Stainless steel alloys, containing chromium and nickel, provide a high level of corrosion resistance. The most common grades are 304 (general purpose) and 316 (higher chemical resistance). Because stainless steel is harder and more expensive than carbon steel, it requires specialized TIG welding techniques and non-ferrous handling tools to prevent "cross-contamination" and subsequent corrosion of the weld joints.

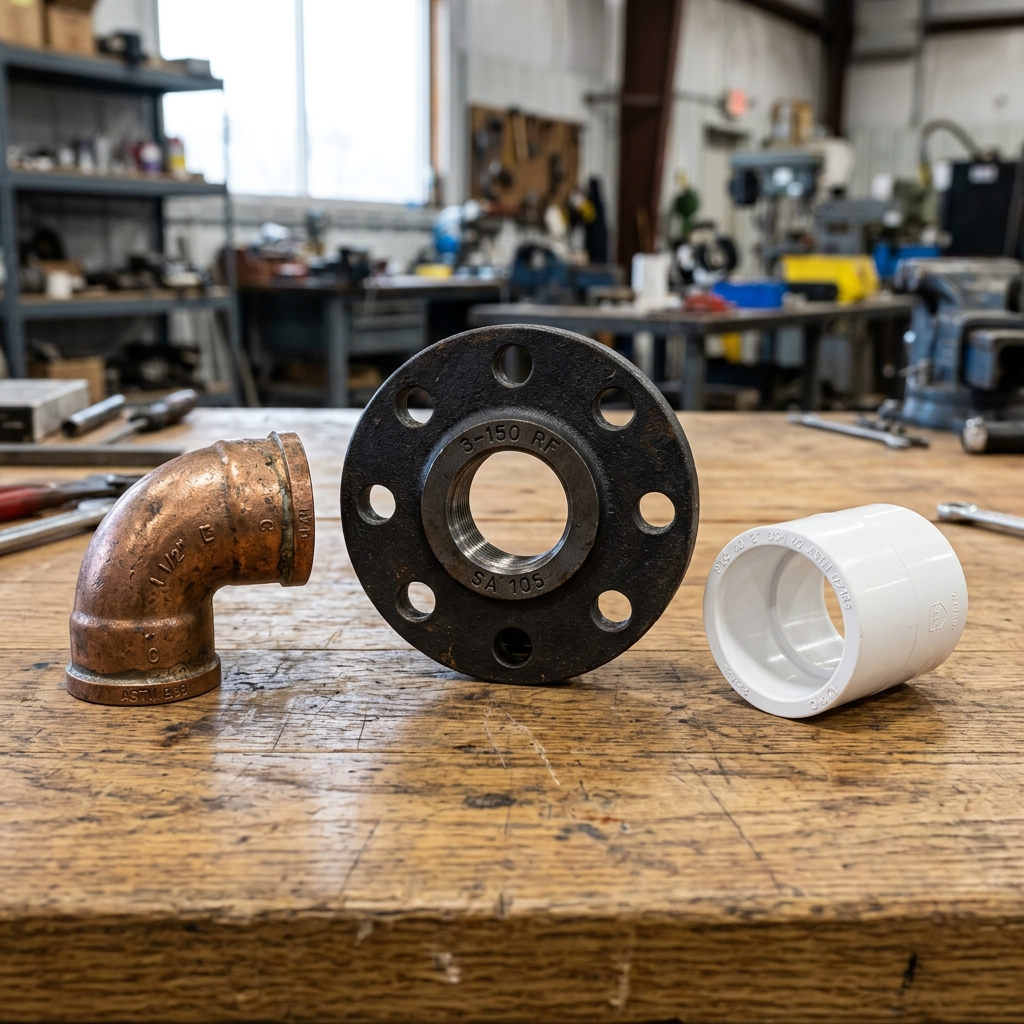

3. Non-Ferrous and Plastic Materials

Non-ferrous materials like copper are favored for their excellent heat transfer properties and natural antimicrobial effects, making them the standard for medical gas and domestic water systems. Meanwhile, the use of plastic piping (PVC, CPVC, and HDPE) has exploded in popularity due to its light weight and total immunity to corrosion. While plastic is easy to install, fitters must be careful with its thermal expansion rates—PVC expands significantly more than steel, necessitating the use of specialized expansion loops or flexible couplings to prevent system failure as temperatures fluctuate.

4. Digital Precision with PipeFit Pro

With so many different standards (ASTM, ASME, API) and varying wall thicknesses across schedules, memorizing the dimensions for every material is nearly impossible. Modern professionals use digital assistants to ensure they never make a sizing error in the field. The PipeFit Pro app provides a comprehensive database of common pipe materials, allowing you to instantly look up OD, ID, and weight for carbon steel, stainless, and plastic pipes. By using digital verification, fitters can ensure that their material selection perfectly matches the engineering specifications of the project.

Conclusion

Understanding common pipe materials is the foundation of the pipefitting trade. A pipe is not just a tube; it is a carefully engineered vessel designed to safely transport energy and resources. By respecting the chemical and physical limits of each material—from the strength of A106 carbon steel to the inertness of PVC—you ensure that the infrastructure you build is safe, efficient, and built to last for generations.
