Pipe Fittings Explained: A Comprehensive Guide for Fitters

The Anatomy of a Piping System

In industrial construction, a pipe by itself is just a straight line. To navigate around obstacles, change flow directions, or split resources, we rely on specialized components: fittings. Having pipe fittings explained simply means understanding the logic behind these components and knowing which one to select for a specific engineering requirement. From high-pressure refineries to domestic HVAC, the choice of fitting determines the system's efficiency and safety. This guide provides a deep dive into the most common types of fittings used by professional pipefitters.

Featured Snippet: Common Pipe Fittings Overview

Fitting Type	Primary Function	Change in Flow
90° Elbow	Changes direction vertically or horizontally	90 Degrees
Equal Tee	Branches a single line into two identical lines	90 Degree branch
Concentric Reducer	Changes pipe diameter while keeping centerlines aligned	Diameter reduction
Union	Allows for easy disconnection of pipes without cutting	None
Cap	Permanently or temporarily seals the end of a pipe	Terminates flow

1. Elbows: Changing the Direction of Flow

Elbows are the most frequently used fittings in any system. While the 90° and 45° elbows are the standard, specialized "Long Radius" (LR) and "Short Radius" (SR) elbows are chosen depending on the fluid velocity and pressure drop requirements. When pipe fittings explained in a technical context, it is important to note that Long Radius elbows are preferred for systems with high-velocity fluids to minimize internal turbulence and erosion on the pipe wall.

2. Tees and Branch Connections

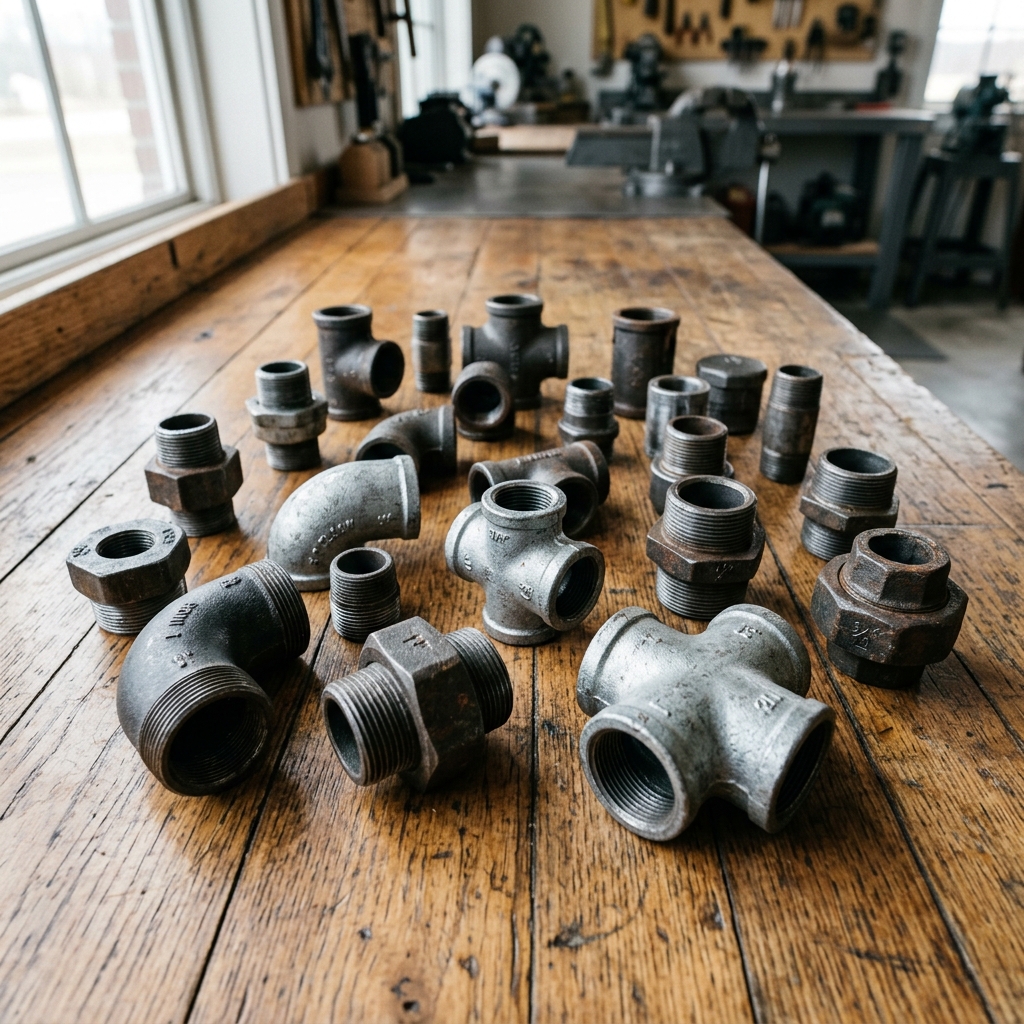

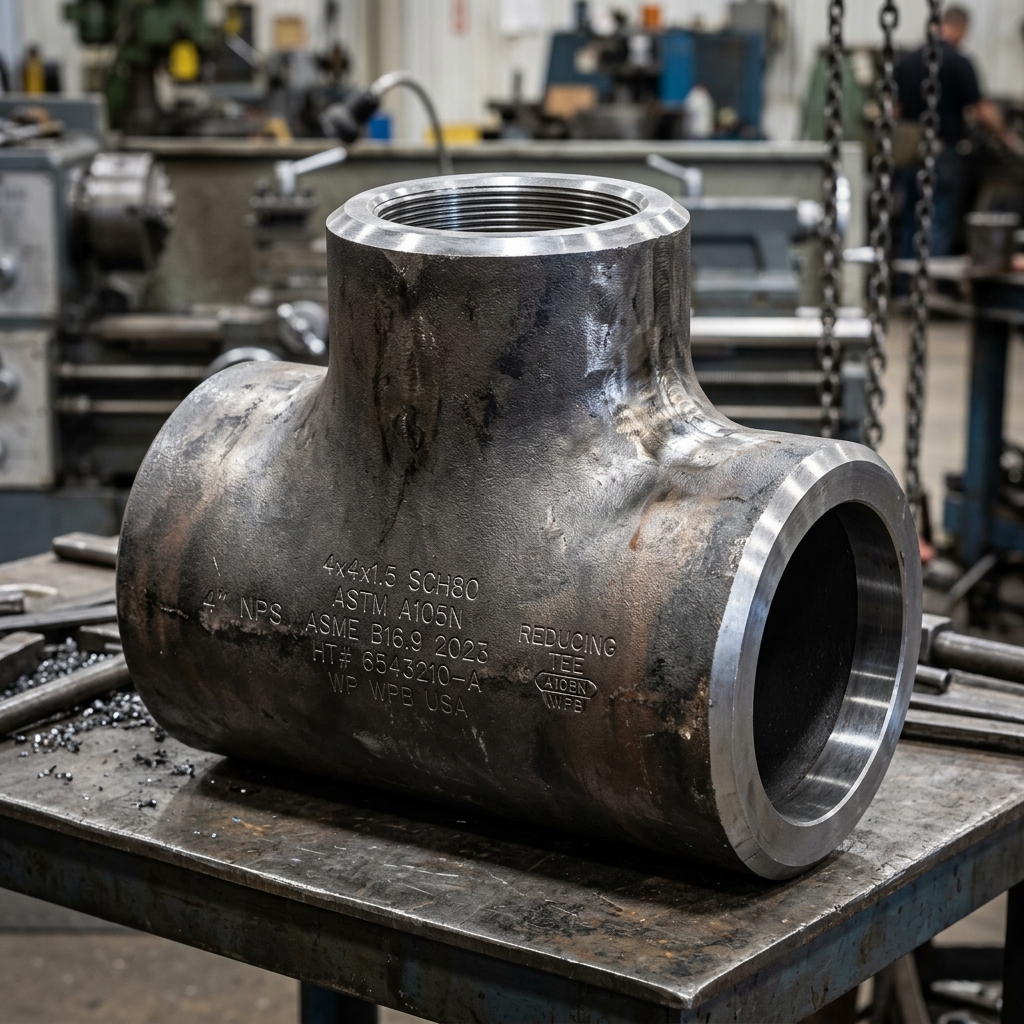

Tees are used to combine or split fluid flow. An "Equal Tee" has the same diameter for all three openings, while a "Reducing Tee" has a smaller branch outlet to step down the flow rate. In high-pressure industrial systems, branch connections are often made using specialized "Olets" (Weldolets, Threadolets) which provide a reinforced, leak-proof transition without the bulk of a full-size tee. Choosing between a standard tee and a reinforced olet depends on the pipe schedule and the specific ASME code requirements of the project.

3. Reducers and Couplings

When you need to transition between two different pipe sizes, you use a reducer. There are two main types: Concentric (symmetric, used for vertical lines) and Eccentric (offset, used for horizontal lines to prevent liquid trapping or "cavitation"). Couplings and Unions, on the other hand, are used to join two straight sections of pipe. While a coupling is a permanent or semi-permanent joint, a union allows a fitter to take the pipe run apart for maintenance or equipment repair without needing to cut or re-weld the system.

4. Precision Selection with PipeFit Pro

Identifying the correct fitting dimensions in the field—especially when dealing with reducing fittings or heavy-wall schedules—is a common source of error. To ensure your take-offs are accurate and your material list is perfect, the PipeFit Pro app offers a digital library of all standard fitting dimensions. Whether you need the center-to-face measurement for a 6-inch LR elbow or the weight of a 10-inch tee, the app provides instant verification based on ASME B16.9 standards. Integrating digital tools into your fitting selection process ensures a first-time fit every time.

Conclusion

Having pipe fittings explained is about more than just knowing their names; it is about understanding how to build a safe, reliable path for industrial resources. By selecting the right elbows, tees, and reducers for your pressure and flow requirements, you create systems that can operate under extreme stress for decades. Never underestimate the importance of a single fitting—in the world of high-pressure piping, every joint is a potential point of failure, and every selection must be made with precision and expertise.
