Pipe Joining Methods: A Complete Guide for Pipefitters

Connecting the Infrastructure

A piping system is only as strong as its weakest joint. The process of connecting two pieces of pipe, or a pipe to a fitting, requires a deep understanding of fluid dynamics, system pressure, and material science. Selecting the correct pipe joining methods is critical to preventing leaks, blowouts, and long-term corrosion. In this guide, we will explore the four primary methods used in industrial and commercial pipefitting, detailing when and why each is applied.

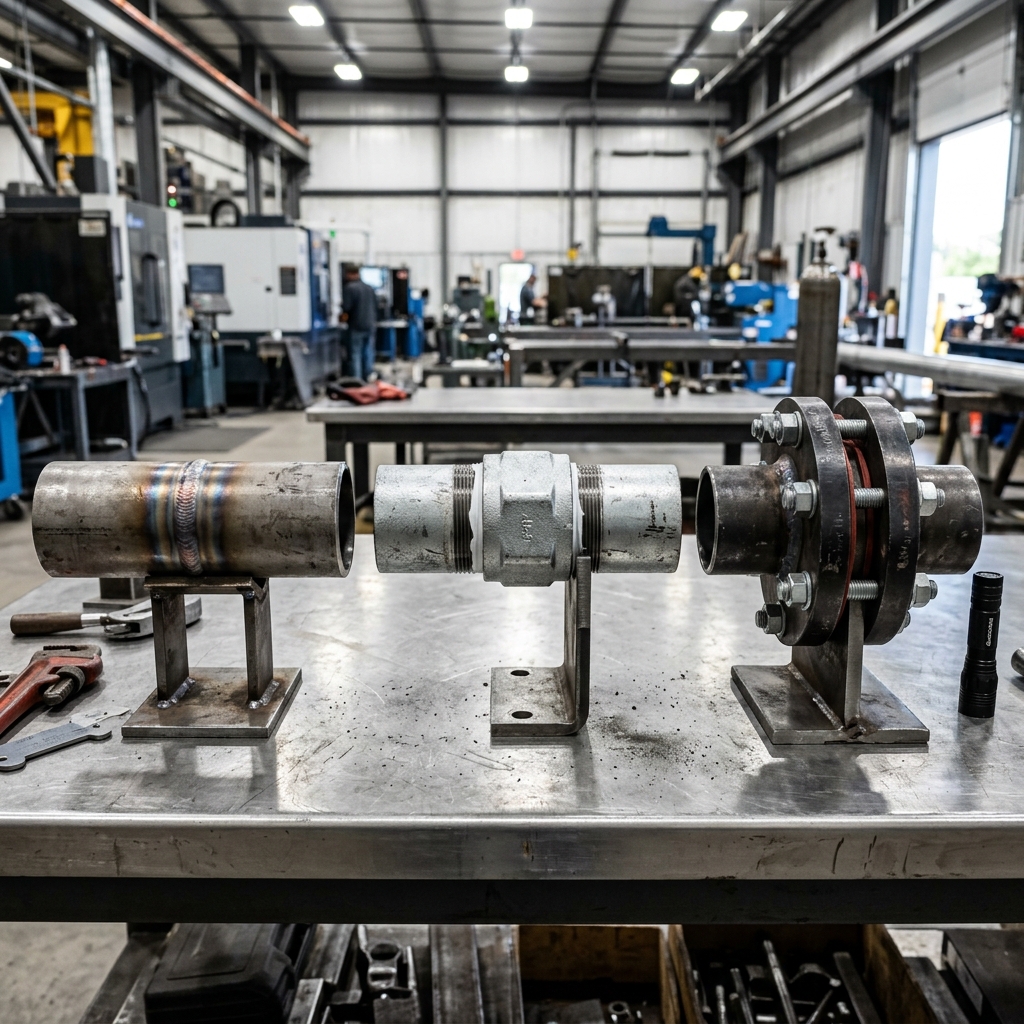

Featured Snippet: Joining Method Comparison

Joining Method	Best Used For	Primary Advantage
Butt Welding	High pressure, large diameter	Maximum strength and flow
Socket Welding	Small diameter, high pressure	Faster alignment than butt weld
Threaded	Low pressure, hazardous areas	No "hot work" (welding) required
Flanged	Valves, equipment connections	Easy disassembly for maintenance

1. Butt Welding: The Industrial Standard

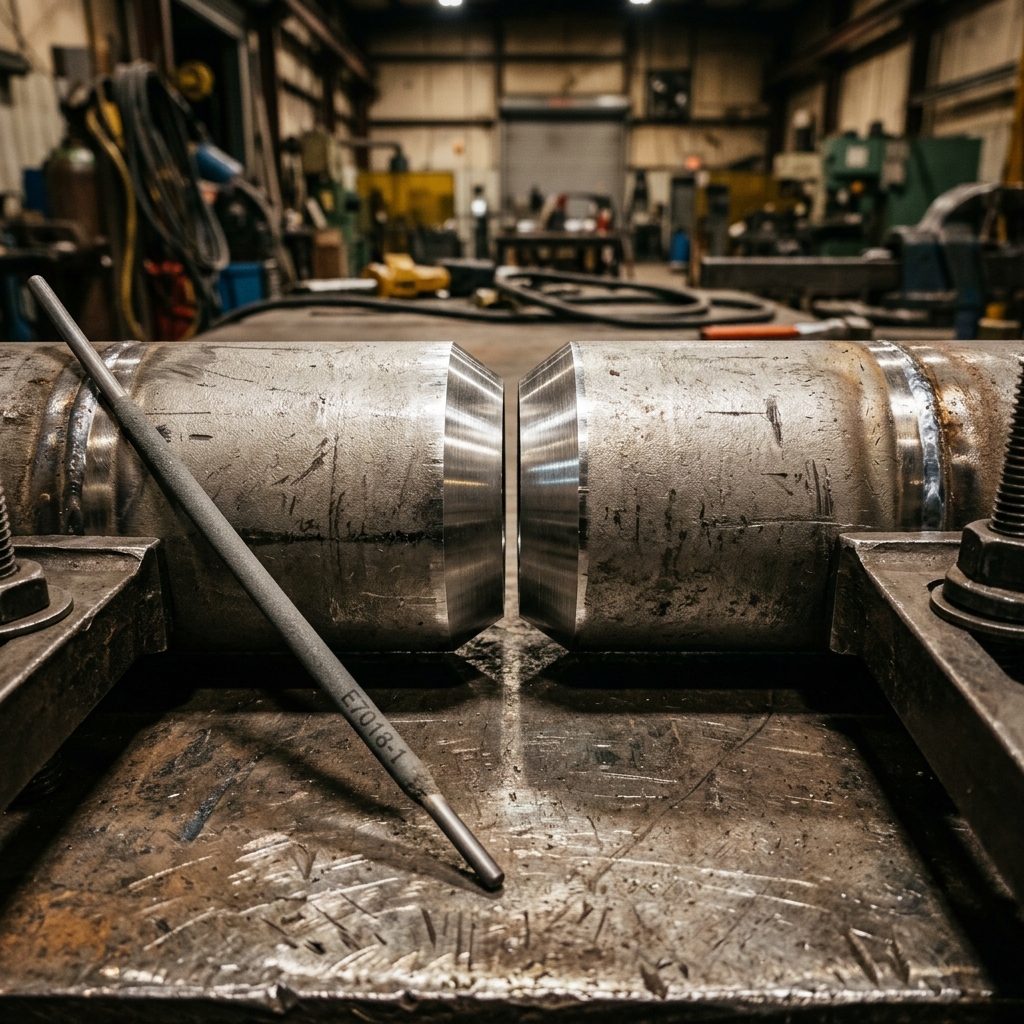

For high-pressure, critical systems (like steam, oil, and gas), butt welding is the undisputed king of pipe joining methods. In a butt weld, the ends of the two pipes are beveled, brought together with a slight gap, and fused using a welding process like TIG or stick welding. Because the weld penetrates the full wall thickness, the joint becomes as strong—or stronger—than the pipe itself. Furthermore, it leaves the inside of the pipe completely smooth, minimizing flow resistance and turbulence.

2. Socket Welding: Speed and Precision

Socket welding is typically used for smaller diameter pipes (usually under 2 inches). Instead of beveling the ends, the pipe is inserted into a recessed area (the "socket") of the fitting, and a fillet weld is applied around the exterior. While socket welding is much faster to align than butt welding, it has a significant drawback: the small gap left at the bottom of the socket (to allow for thermal expansion during welding) can trap corrosive fluids, leading to premature failure in acidic environments.

3. Threaded and Flanged Connections

Not every environment allows for the sparks and open flames of welding. In highly flammable areas, or for low-pressure utilities like instrument air and cooling water, threaded joints are preferred. Pipes are cut with a tapered thread (like NPT) and screwed together using a sealant compound or Teflon tape.

Conversely, when a system needs to be taken apart frequently—such as for repairing a pump or replacing a valve—flanged connections are used. Two flanged faces are bolted together with a compressible gasket in between. Achieving a leak-free flanged joint requires immense precision in alignment and torque, a skill every master fitter must perfect.

4. Precision Layout with PipeFit Pro

Every joining method changes the overall length of the piping run. A butt weld creates a small "weld gap" that must be accounted for, while a threaded joint requires calculating "thread engagement" (how far the pipe screws into the fitting). To prevent cutting a pipe too short, modern pipefitters rely on the PipeFit Pro app. By inputting your pipe schedule and joint type, the app instantly calculates your true cut length, ensuring perfect fit-up regardless of the joining method you are employing.

Conclusion

Mastering the various pipe joining methods separates a basic installer from a true industrial pipefitter. By understanding the physics behind a full-penetration butt weld, the convenience of a socket weld, and the mechanical requirements of threads and flanges, you can build systems that operate safely under extreme conditions. The method you choose dictates the longevity of the system—always match the joint to the job.
