Measuring Pipe: The Foundation of Fit-up

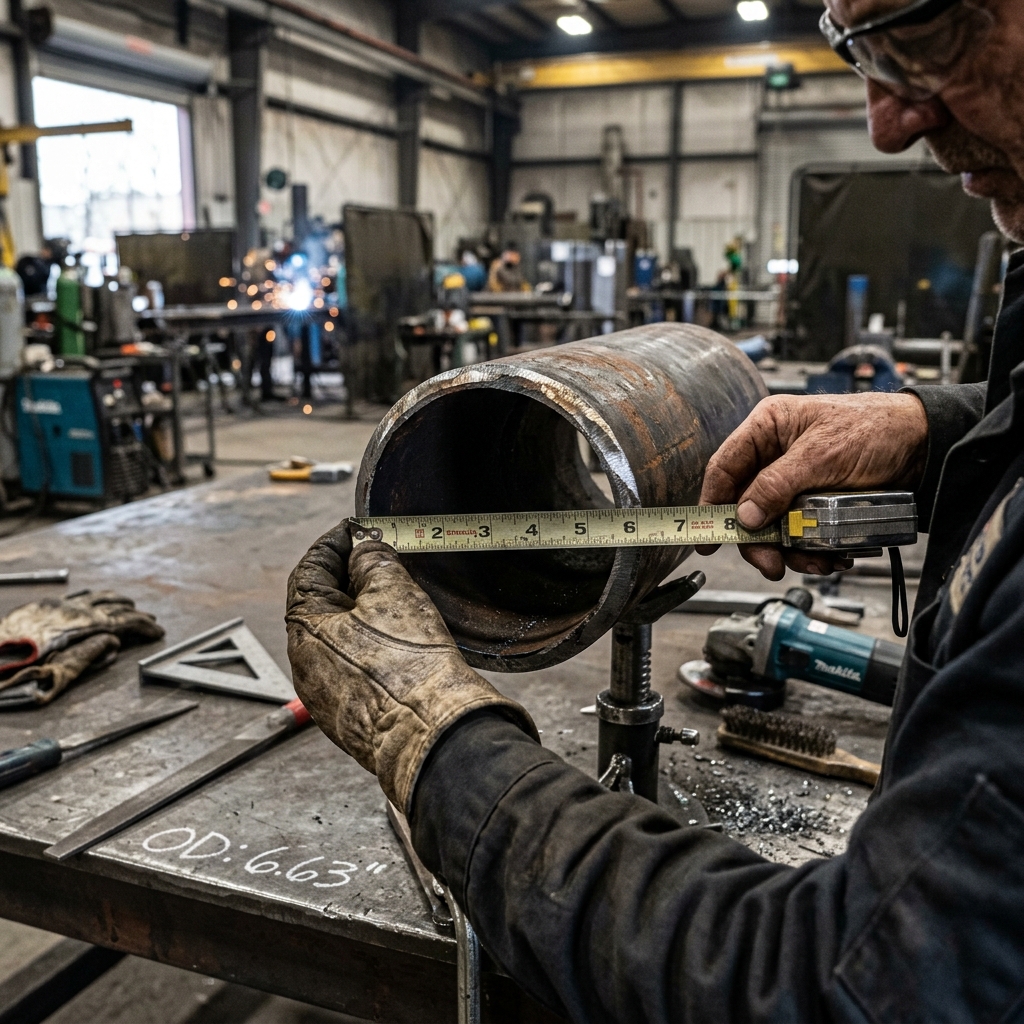

One of the most confusing concepts for a first-year apprentice is understanding how to measure pipe. If you take a tape measure to a "2-inch pipe," you will quickly discover that neither the inside diameter nor the outside diameter actually measures exactly 2 inches. This discrepancy is the source of countless costly errors in the field. To fabricate accurate geometries and ensure safe pressure ratings, every fitter must master the terminology of Nominal Pipe Size (NPS), Outside Diameter (OD), and Schedule (Wall Thickness).

Featured Snippet: Standard Pipe Measurement Rules

Pipe Size Range	Outside Diameter (OD) Rule	Inside Diameter (ID) Rule
1/8" to 12" NPS	OD is strictly larger than the NPS	ID varies based on Schedule
14" NPS and Larger	OD is exactly equal to the NPS	ID is NPS minus (2 x Wall Thickness)
Tubing (All Sizes)	OD is exactly the measured size	ID varies based on Gauge

1. Nominal Pipe Size (NPS) vs. Outside Diameter (OD)

The term "Nominal Pipe Size" (NPS) is a North American standard for identifying pipe sizes. It is a non-dimensional designator. For pipes from 1/8-inch up to 12-inch, the NPS does not correspond to any actual physical dimension. For example, a 2-inch NPS pipe has an actual Outside Diameter of 2.375 inches. When learning how to measure pipe, the golden rule is that the OD remains constant for a given NPS, regardless of the wall thickness. This ensures that a 2-inch pipe will always fit into a 2-inch fitting or valve, no matter how thick the walls are.

2. Understanding Pipe Schedule (Wall Thickness)

The "Schedule" of a pipe refers to its wall thickness. A Schedule 40 (Standard) pipe is thinner than a Schedule 80 (Extra Strong) pipe. Because the OD must remain constant to match exterior fittings, increasing the Schedule means adding material to the inside of the pipe. Therefore, a higher Schedule pipe will have a smaller Inside Diameter (ID) and a lower flow capacity. Always use a precision caliper or micrometer to measure wall thickness when replacing existing sections, as mixing schedules can lead to dangerous pressure mismatches.

3. Tubes vs. Pipes

It is crucial to differentiate between "pipe" and "tube." While they may look similar, they are measured differently. Tubing (such as copper tubing used in HVAC or stainless steel tubing in instrumentation) is measured by its exact Outside Diameter. A 1-inch tube has exactly a 1-inch OD. Pipe, as established earlier, is measured by its Nominal Size. If an engineer asks you to install "2-inch tube," they expect a 2.000-inch OD, not the 2.375-inch OD of a 2-inch pipe.

4. Flawless Verification with PipeFit Pro

Memorizing the exact OD and wall thickness for every pipe size and schedule is impossible. To prevent cutting a pipe too short or ordering the wrong fittings, master fitters carry reference charts. A modern, error-free alternative is the PipeFit Pro app. By instantly cross-referencing industry standards (ASME B36.10M), the app allows you to select an NPS and immediately see the exact decimal OD, ID, and metal volume required for your fabrication. It eliminates the guesswork from field measurements.

Conclusion

Knowing how to measure pipe correctly is non-negotiable for anyone in the pipe trades. By understanding the quirks of the NPS system and the impact of the pipe schedule on the Internal Diameter, you can avoid costly fit-up errors and ensure structural integrity. Keep your tape measure accurate, trust your calipers, and always double-check the true OD before making your first cut.
