Reading Piping Symbols: A Guide to P&ID Blueprints

Decoding the Language of Engineering

Before a single piece of pipe is cut or a welding machine is turned on, the entire industrial process exists as a drawing. For a pipefitter, the ability to translate these drawings into a physical, high-pressure system is the most critical skill they possess. The foundation of this skill lies in reading piping symbols accurately. These symbols are the universal language of mechanical engineering, detailing exactly what valve, fitting, or instrument belongs in the system. This guide will introduce you to the core concepts of reading Piping and Instrumentation Diagrams (P&IDs) and Isometric drawings.

Featured Snippet: Standard P&ID Valve Symbols

Recognizing the type of valve required is the first step in reading any industrial blueprint. Here are the common geometric representations:

Valve Type	Standard Symbol Representation	Primary Purpose
Gate Valve	Two triangles meeting at a central point (Bowtie shape)	Full On / Full Off isolation
Globe Valve	Bowtie shape with a solid circle in the center	Regulating flow (Throttling)
Check Valve	A 'Z' or backwards 'N' across the flow line	Preventing reverse flow
Ball Valve	Bowtie shape with a hollow circle in the center	Quick quarter-turn isolation

1. The P&ID: The Big Picture

A Piping and Instrumentation Diagram (P&ID) is a schematic illustration of a complete functional system. It shows the interconnected piping, storage vessels, pumps, and all the sensing instruments necessary to run the plant safely. When reading piping symbols on a P&ID, remember that the drawing is not to scale. A one-inch line on paper representing a 10-foot run of pipe will look the same as a line representing a 100-foot run. The P&ID exists to show logic and connections, not lengths or geographic locations.

2. Line Types and Designations

Not all lines on a blueprint signify a steel pipe carrying fluid. Flow lines (the actual pipes) are typically drawn as thick, solid lines. Thinner, dashed lines usually represent electrical signals to instruments (like pressure transmitters), while lines with small cross-marks might represent pneumatic (air) signals operating a control valve. Furthermore, every major pipe line will have an alphanumeric code attached to it (e.g., 10"-CS-150-HG). This code tells the fitter the pipe size (10 inch), the material (Carbon Steel), the pressure class (150#), and the fluid service (Hot Gas).

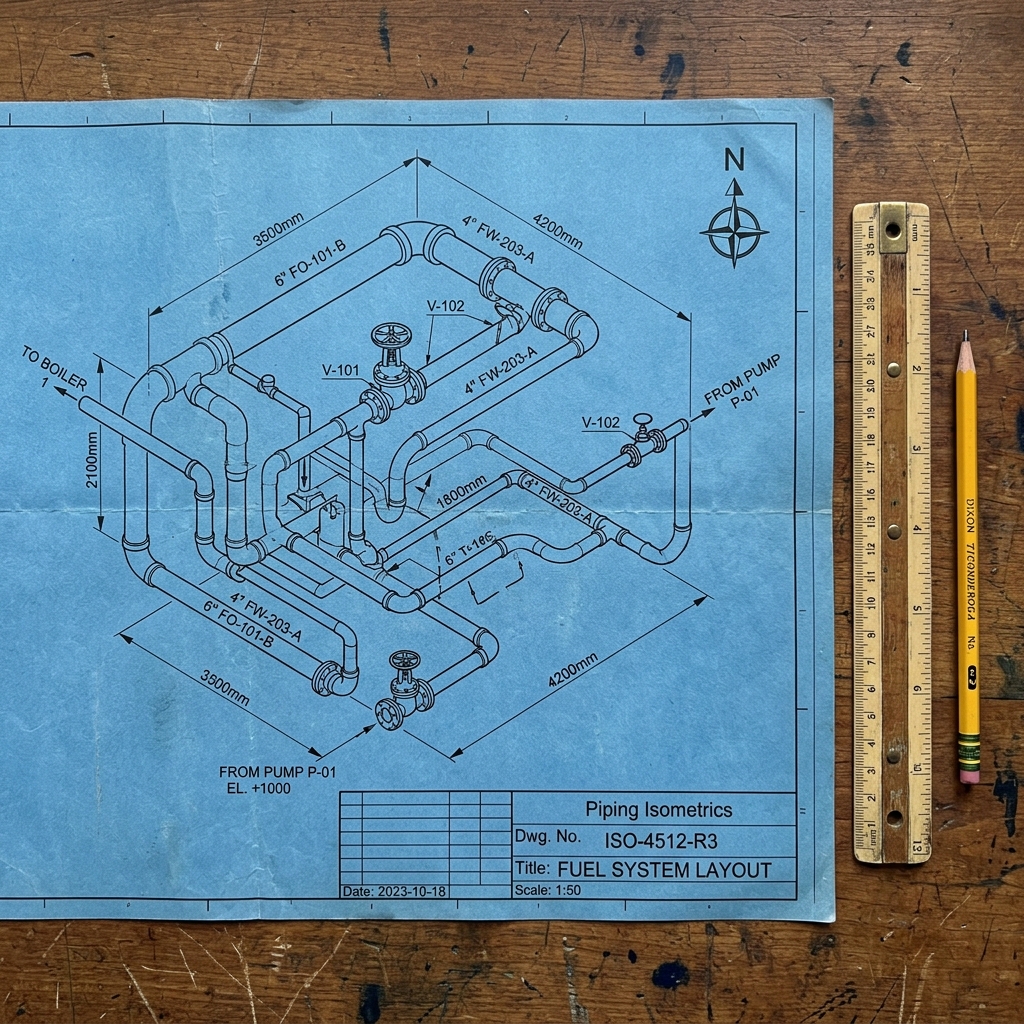

3. Isometric Drawings: The Fitter's Roadmap

While engineers use P&IDs for process logic, the field pipefitter uses Isometric (ISO) drawings to actually build the spool. ISOs translate the flat 2D logic of the P&ID into a 3D representation. Drawn on a 30-degree grid, the ISO shows exact lengths, elevations, and the geometric location of every fitting. The symbols on an ISO are often more detailed than a P&ID, showing exactly what type of weld or flanged connection is required to join the valve to the pipe.

4. Digital Translation with PipeFit Pro

Translating an isometric drawing into a set of physical pipes involves complex trigonometry. Calculating the exact "take-off" distance for an angled fitting shown on the blueprint is where many errors occur. The PipeFit Pro app acts as a digital companion to your printed blueprints. By reading the angles and lengths off your ISO and inputting them into the app, you instantly receive mathematically perfect cut lengths for your pipe, effectively bridging the gap between theoretical symbols and physical steel.

Conclusion

The mastery of reading piping symbols transforms a manual laborer into a highly skilled technician. By understanding the geometric icons for valves, interpreting complex line numbering, and visualizing 3D space through isometric grids, you become the crucial link between the engineer's vision and the operational reality of the plant. Study the symbols, practice visualizing the flow, and always double-check the line specifications before fabrication begins.
