High Pressure Steam Piping: Material Standards and Safety

Theoretical and Practical Guide to High-Pressure Steam Piping

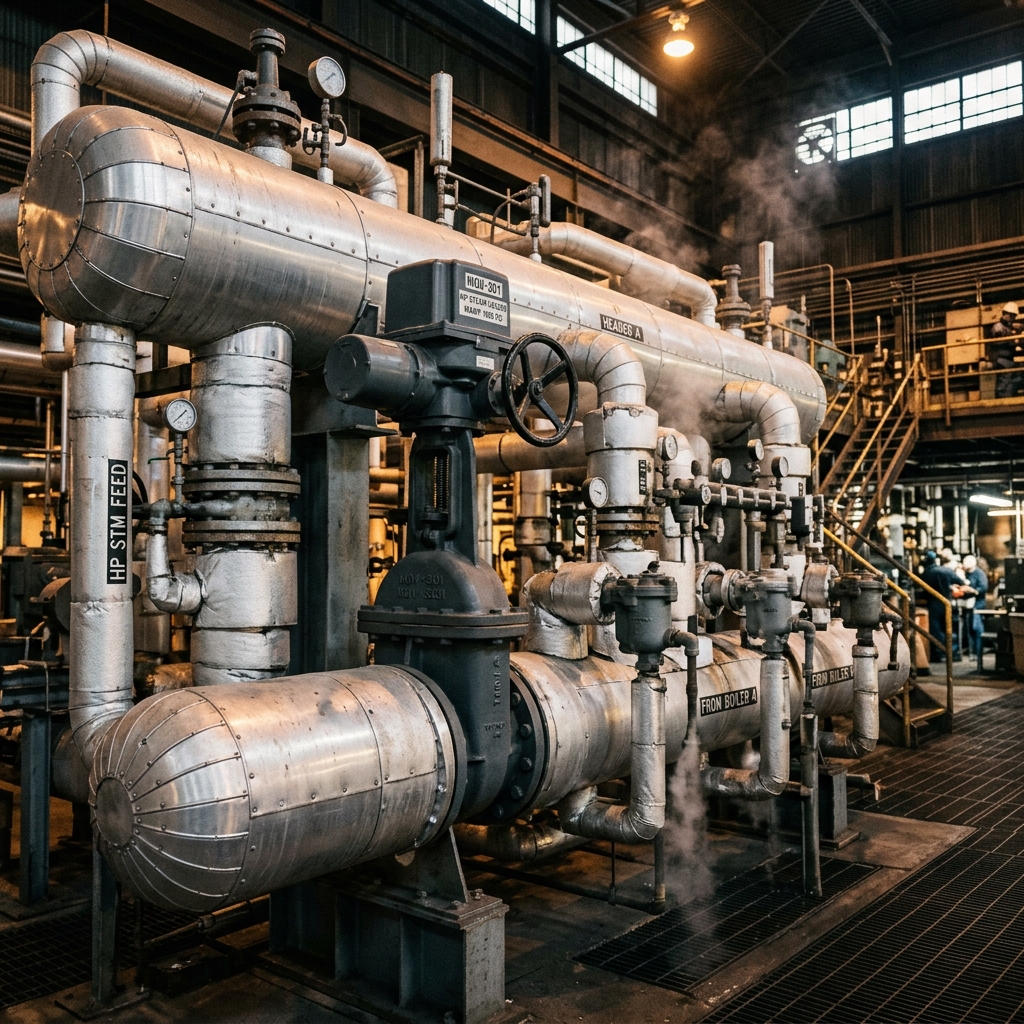

High-pressure steam is one of the most volatile and dangerous mediums transported in industrial plants. Operating at pressures exceeding 600 PSI and temperatures above 700°F, a high pressure steam piping system requires precision engineering, specialized metallurgy, and strict adherence to safety codes. This guide focuses on the power piping standards governed by ASME B31.1, exploring the critical materials and fabrication techniques used in modern power plants and refineries.

Featured Snippet: Steam Piping Material Selection

Choosing the right alloy is essential for preventing creep and thermal fatigue. Here is the standard material hierarchy for steam systems:

Temperature Range	Pipe Material (Grade)	Common Usage
Up to 750°F	ASTM A106 Grade B	Saturated Steam / Condensate
750°F - 1000°F	ASTM A335 P11 / P22	Superheated Steam (Alloy Steel)
Over 1000°F	ASTM A335 P91 / P92	High-Efficiency Supercritical Steam

1. The Dangers of Thermal Expansion

Unlike ambient fluid systems, high pressure steam piping expands significantly as it heats up. A 100-foot run of carbon steel pipe can expand by more than 8 inches when heated to superheated steam temperatures. If this expansion is not managed through expansion loops, offsets, or bellows, the resulting stress will buckle the pipe or tear it away from its supports. Proper pipe supporting, using variable or constant spring hangers, is mandatory to allow the system to move freely while maintaining its structural alignment.

2. Ensuring Dry Steam: The Role of Steam Traps

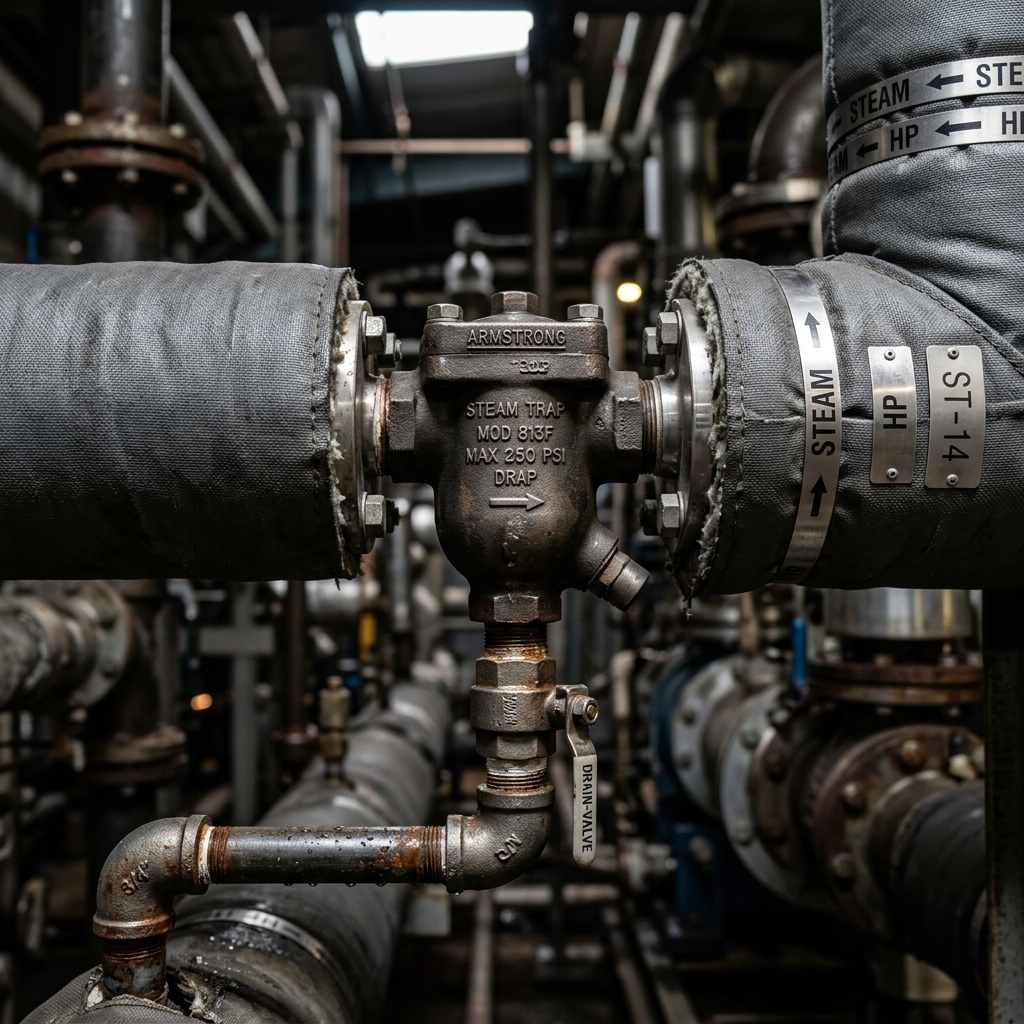

Condensate is the enemy of any steam system. If water is allowed to accumulate in the steam line, it can lead to "water hammer"—a high-velocity slug of water that hits an elbow or valve with enough force to cause a catastrophic rupture. To prevent this, high pressure steam piping must be sloped toward drainage points equipped with steam traps. These mechanical devices automatically discharge condensate while preventing the loss of live steam. The inverted bucket trap and thermodynamic disc trap are the industry standards for high-pressure durability.

3. Welding and Post-Weld Heat Treatment (PWHT)

When welding alloy steel pipes like P22 or P91, the process is far more complex than standard carbon steel welding. These materials require precise pre-heating and Post-Weld Heat Treatment (PWHT) to relieve internal stresses and restore the metal's grain structure. Failing to perform PWHT on high-pressure steam joints can lead to brittle fracture and explosive failure within months of service. All welds must undergo 100% volumetric inspection (Radiography or Ultrasonic testing) to ensure full penetration and zero defects.

4. Precision Design with PipeFit Pro

Calculating the thermal expansion, pipe weights, and insulation thicknesses for a superheated steam line requires advanced mathematical modeling. Errors in loop design can lead to fatal accidents. To assist in the early stages of fabrication and field verification, the PipeFit Pro mobile app provides essential data for various pipe schedules and material weights. By using digital tools to verify your offsets and expansion dimensions, you reduce the risk of field fit-up issues and ensure a safer, more reliable steam distribution network.

Conclusion

High pressure steam piping is the backbone of industrial power. By respecting the ASME B31.1 code, selecting the correct chromium-moly alloys, and implementing robust condensate management, Fitters can build systems that operate safely under extreme stress for generations. Never take steam for granted; respect the temperature, trust the math, and always prioritize weld quality.
