Pipeline Pigging Procedure and Purging: A Modern Guide

Introduction to Pipeline Maintenance Systems

To ensure the long-term efficiency and safety of a pipeline network, the interior of the pipe must be kept clean, free of debris, and inspected for corrosion or structural defects. This is achieved through two linked industrial processes: purging and pigging. While "purging" removes hazardous gases or fluids, the pipeline pigging procedure uses mechanical devices called "pigs" to physically scrub or scan the pipe's interior. This guide covers the essential types of pigging tools and the standard safety protocols for launching and receiving them.

Featured Snippet: Common Pipeline Pig Types

Choosing the right tool is the first step in a successful maintenance run. Here are the four primary pigs used in industrial piping:

Pig Type	Core Function	Material / Construction
Foam / Poly Pig	Soft cleaning and drying	Polyurethane foam

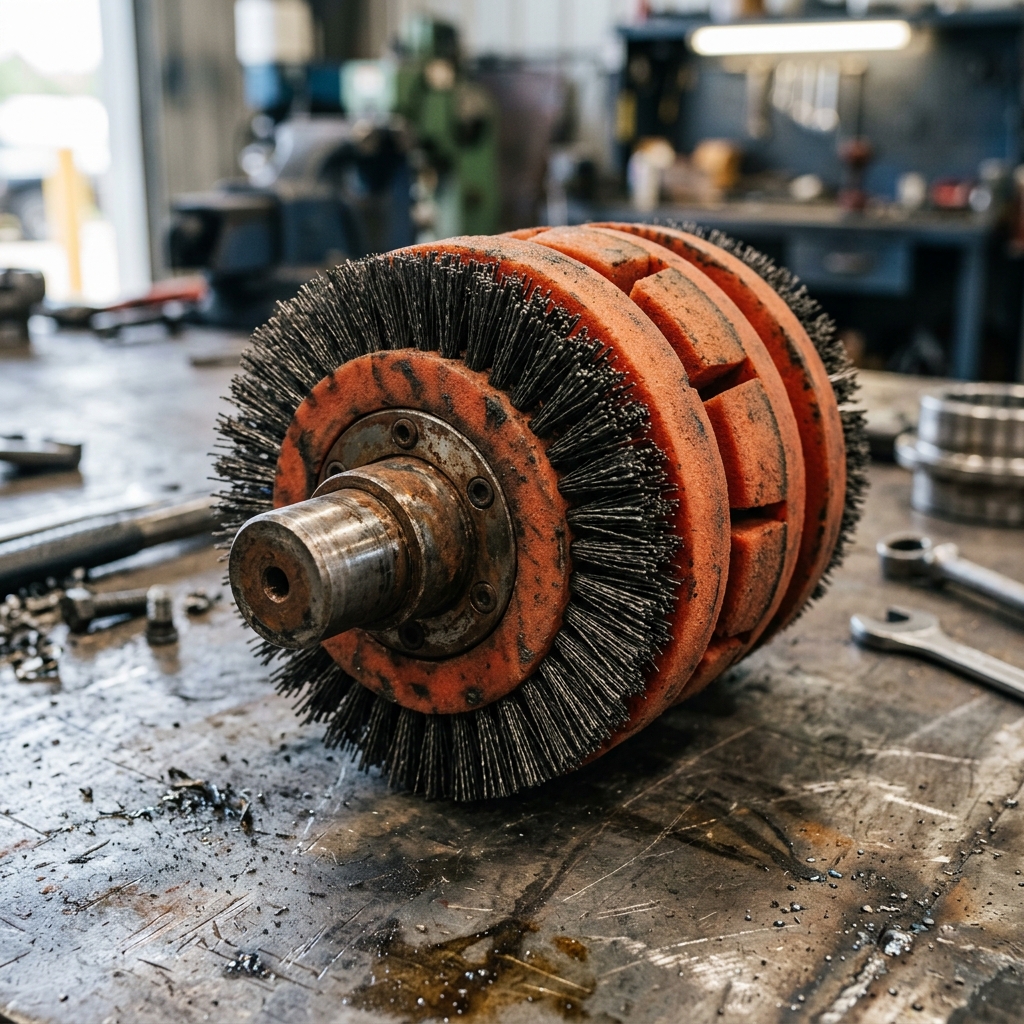

Mandrel Pig	Heavy-duty scraping/descaling	Steel body with wire brushes
Spherical Pig	Liquid removal / Batching	Solid polyurethane or hollow
Smart Pig (ILI)	Internal Inspection (Metal loss)	Magnetic Flux Leakage sensors

1. The Anatomy of a Pig Launcher and Receiver

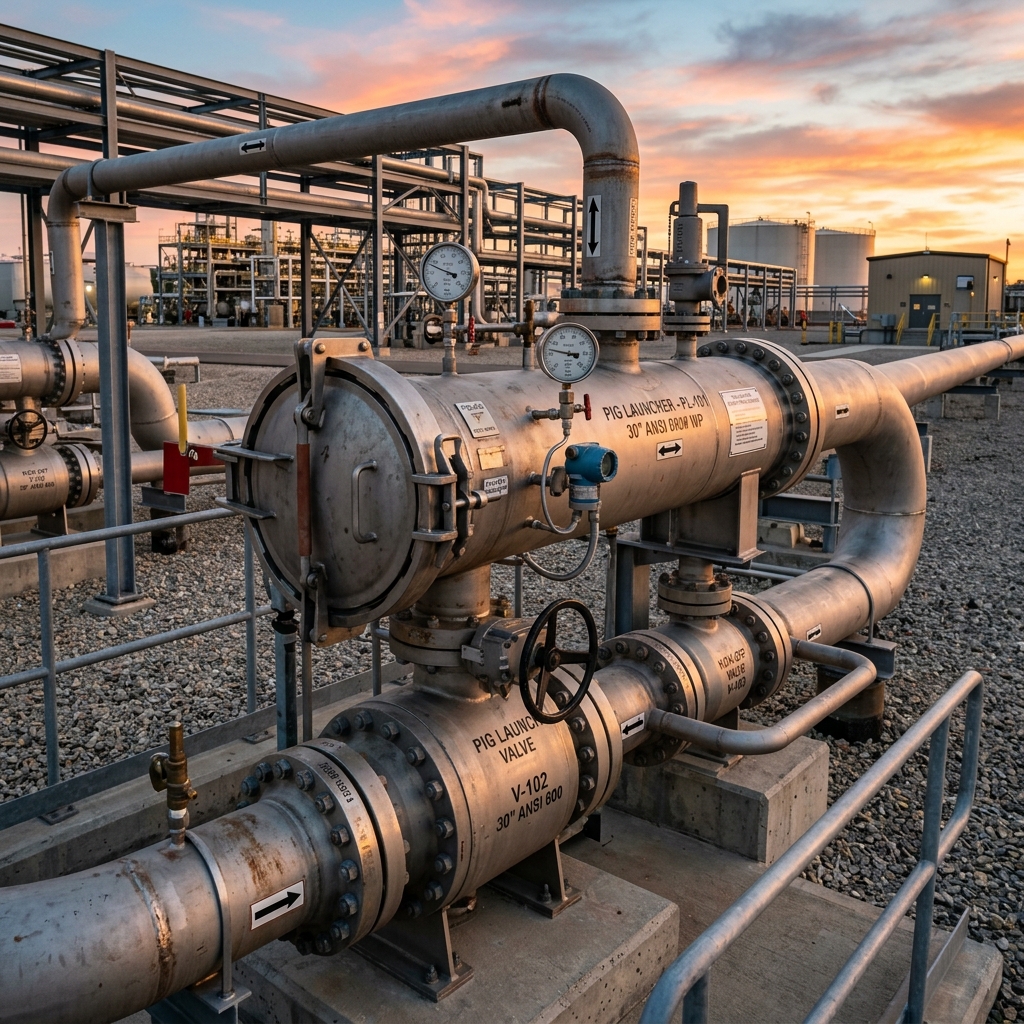

To insert a pig into a live, pressurized pipeline, you need specialized hardware called a Pig Launcher and a Pig Receiver (often collectively called a "Pig Trap"). These are oversized vessels at the beginning and end of a pipe segment. The launcher allows a technician to insert the pig, close the pressure-rated door, and then use the flow of the product (oil, gas, or water) to push the pig through the pipeline. The receiver at the other end captures the pig, allowing it to be safely removed along with any debris it has collected.

2. The Step-by-Step Pipeline Pigging Procedure

A standard pipeline pigging procedure follows a strict sequence to ensure safety and prevent the tool from getting stuck (a "stuck pig" can lead to multi-million dollar extraction costs):

1. Preparation: Pigs are measured and inspected for wear. The line is checked for valve positions to ensure a clear path.
2. Launching: The pig is placed into the launcher. The vessel is pressurized, and the kicker valve is opened to divert flow behind the pig, initiating the run.
3. Tracking: On long-distance runs, technicians use acoustic pinger or magnetic trackers to monitor the pig's location from the surface.
4. Receiving: The pig arrives at the receiver station, is safely bypassed, and the vessel is depressurized before the pig and debris are extracted.

3. Safety Standards for Purging Operations

Before a pipeline can be opened for maintenance or repair, it must be "purged" of its contents. This usually involves injecting an inert gas like Nitrogen to displace flammable or toxic substances. The "Golden Rule" of purging is to ensure the oxygen level is below the Lower Explosive Limit (LEL) before any hot work (welding/cutting) begins. Documentation of the purge, including gas sampling results, must be included in the site safety report.

4. Maximizing Productivity with PipeFit Pro

Pigging operations require precise knowledge of the pipeline's internal geometry. A slight mismatch in pipe schedule or an unexpected mitered bend can cause a pig to stall. Professional piping engineers use digital toolkits to verify their designs before any maintenance run. The PipeFit Pro app provides instant calculations for pipe internal diameters across various schedules, helping you select the perfect pig size and predict travel time based on flow rates. This precision minimizes downtime and eliminates the risk of expensive stuck-pig scenarios.

Conclusion

Mastering the pipeline pigging procedure is vital for any industrial operator focused on asset integrity. From simple foam cleaning runs to advanced "Smart Pigging" for corrosion scanning, these tools are the lifeblood of a healthy pipeline. By following strict launching protocols and leveraging modern engineering software, you ensure that your pipeline remains at peak performance for decades to fruition.
