Hydrostatic Testing Procedure for Pipelines: Safety Guide

Hydrostatic Testing Procedure for Pipelines: Safety Guide

Master the hydrostatic testing procedure for industrial pipelines. Learn safety protocols, pressure calculations, and documentation for leak-proof systems.

Mạnh Hùng
Mạnh Hùng
•April 13, 2026•4 min read

Introduction to Industrial Hydrostatic Testing

Before any pipeline or pressure vessel is put into service, it must undergo a rigorous verification process to ensure its structural integrity. The most reliable method for this is the hydrostatic testing procedure. By filling a system with a nearly incompressible liquid (usually water) and pressurizing it to a level significantly higher than its operating limit, you can expose hidden leaks, material defects, or welding failures. This guide provides a professional overview of the safety protocols and technical steps required for a successful hydrotest.

Featured Snippet: Hydrotest Pressure Calculator

According to ASME B31.3 (Process Piping), the standard hydrostatic test pressure should be calculated using this base formula:

Test Pressure = 1.5 × Design Pressure

ItemRequirementResponsibility
MediumClean Fresh WaterPiping Contractor
Hold TimeMinimum 30 MinutesQuality Inspector
GaugesRecently Calibrated (2x)Testing Team
Relief ValveSet to 110% of Test PSafety Officer

1. Preparation and Isolation Phase

Successful hydrostatic testing begins before the first gallon of water enters the pipe. You must isolate the test section from all equipment that cannot withstand the test pressure (such as delicate instruments, pumps, or control valves) using high-pressure blind flanges or spade blinds. All air must be vented from the high points of the system as it fills; trapped air is compressible and stores dangerous energy, which can lead to a violent rupture if the pipe fails under pressure.

2. The Pressurization Sequence

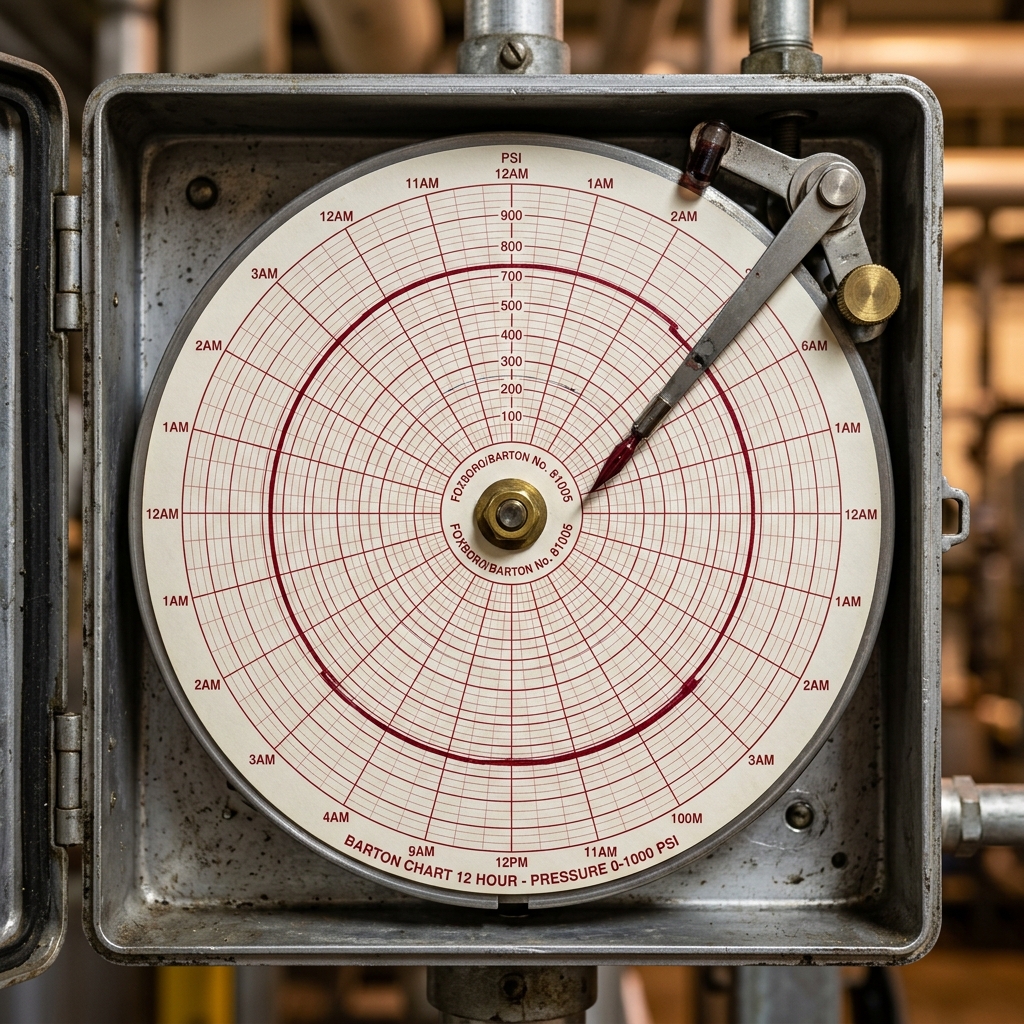

Circular Pressure Recording Chart (Barton Chart)

Never jump straight to the full test pressure. A professional hydrostatic testing procedure uses a staged approach to safely reach the target. Typically, pressure is raised in increments of 25% or 50% of the total test pressure. At each stage, the system is monitored for 10-15 minutes to check for visible leaks or significant pressure drops. Once the full test pressure is reached, the "Hold Period" begins. During this time, the pressure must remain steady (accounting for temperature-related fluctuations) as verified by two calibrated gauges and a pressure recording chart (Barton Chart).

3. Safety: The "Line of Fire"

A hydrostatic test is a high-energy event. Under pressure, even a small leak can produce a high-velocity stream of water capable of cutting through steel or bone. The area surrounding the test section must be cordoned off with "Danger: High Pressure Testing" barrier tape. No unauthorized personnel should be within the "Line of Fire" while the system is at pressure. If a leak is detected, never attempt to tighten a bolt or repair a joint while the system is تحت pressure. The system must be fully depressurized and drained before any maintenance is performed.

4. Post-Test Documentation and Dewatering

Once the test is declared successful by the client or inspector, the system must be depressurized slowly to prevent water hammer or internal vacuum damage. The system is then drained (dewatered) and, in the case of stainless steel or high-purity systems, dried with nitrogen or oil-free compressed air to prevent microbiologically influenced corrosion (MIC). All test logs, gauge certificates, and recording charts must be compiled into a final "Test Pack" for official site handover. To simplify your pre-test planning and volume calculations, tools like PipeFit Pro provide instant data on pipe volumes, ensuring you know exactly how much test medium is required for any given spool.

Conclusion

The hydrostatic testing procedure is the final gatekeeper of quality in piping fabrication. It is a meticulous process that rewards strict adherence to safety codes and professional documentation. By following these staged procedures and maintaining a safe testing perimeter, you ensure that the infrastructure you build is not only leak-free but safe for long-term industrial operation.
