Essential Guide to Threaded Pipe Fitting Standards

In the world of commercial and industrial plumbing, the threaded pipe fitting is a fundamental component for connecting smaller diameter pipes (typically 2 inches and below). However, not all threads are created equal. Using the wrong thread standard—such as trying to force an NPT fitting onto a BSPT pipe—can result in damaged threads and permanent leaks. This technical guide explains the critical differences between National Pipe Thread (NPT) and British Standard Pipe Thread (BSPT) to ensure your connections are secure and code-compliant.

Featured Snippet: NPT vs. BSPT Comparison Chart

Before you grab your pipe wrench, use this comparison to identify which thread standard you are working with:

Feature	NPT (American)	BSPT (British/Global)
Thread Type	Tapered (Angle 60°)	Tapered (Angle 55°)
Sealing Method	Metal-to-Metal + Sealant	Metal-to-Metal + Sealant
Measurement	Inches (US Standard)	Inches (Whitworth Form)
Peaks/Valleys	Flat (Serrated)	Rounded

1. Understanding NPT: The American Standard

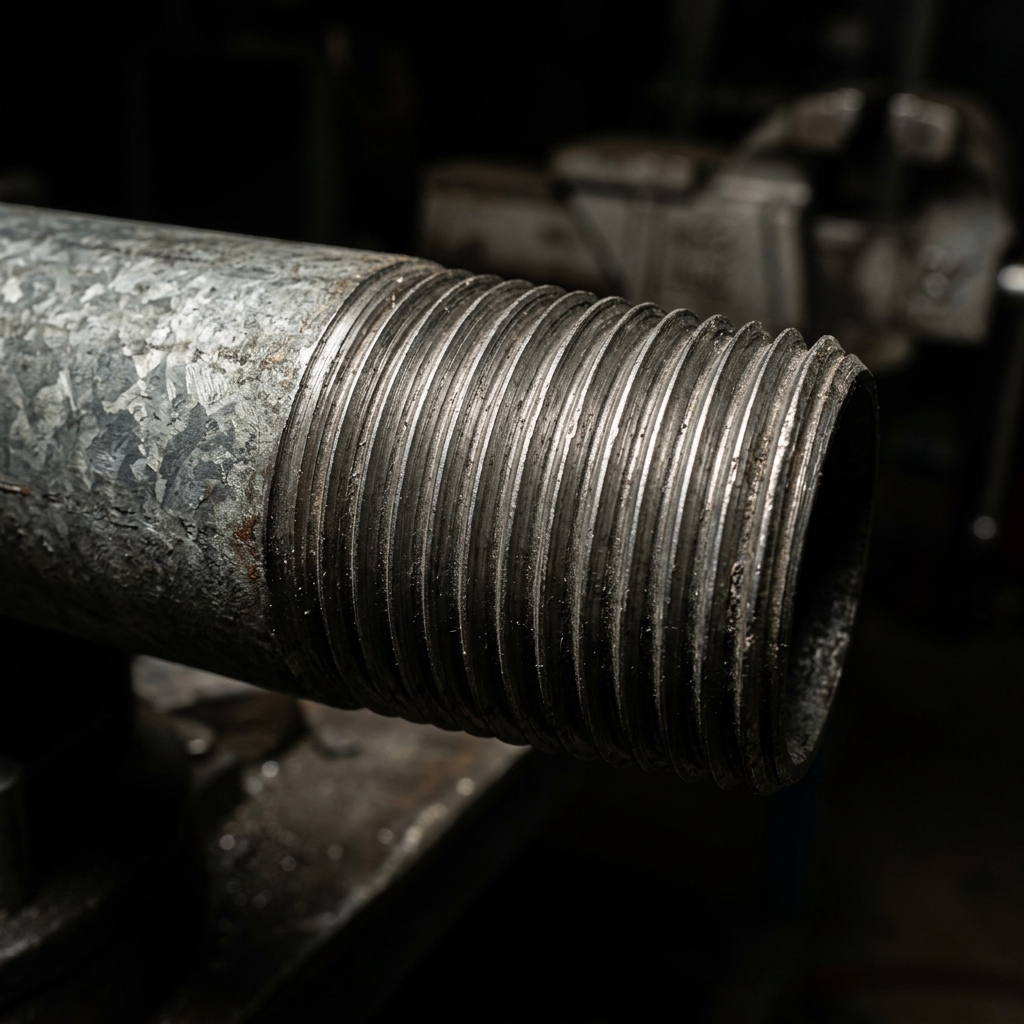

National Pipe Thread (NPT) is the standard for threaded connections in the United States and Canada. The most important characteristic of NPT is that it is tapered. This means the diameter of the thread decreases slightly as you move toward the end of the pipe (a taper of 1/16" per inch of length). When an NPT male fitting is screwed into an NPT female fitting, the tapered surfaces compress against each other, creating a mechanical seal. However, NPT still requires a sealant (like PTFE tape or pipe dope) to fill the microscopic gaps between the thread peaks and valleys.

2. The BSPT Difference

British Standard Pipe Thread (BSPT) is common throughout Europe, Asia, and Australia. While it looks very similar to NPT, it is fundamentally incompatible. BSPT uses the Whitworth thread form, which has a 55-degree thread angle (compared to NPT's 60-degree angle) and rounded peaks and valleys. If you try to mix these standards, the different angles and thread pitches will cause the fitting to bind halfway through, leading to a weak joint that will eventually fail under pressure.

3. Proper Sealing and Installation Techniques

To achieve a leak-proof threaded pipe fitting, proper lubrication and sealing are mandatory. For stainless steel threads, use a nickel-based anti-seize or a high-quality PTFE tape to prevent "galling"—a condition where the metal surfaces cold-weld together, making it impossible to take the joint apart without cutting the pipe. When applying tape, always wrap in the direction of the threads (clockwise when looking at the pipe end) to ensure it doesn't unravel as you screw the fitting into the socket.

4. Avoiding Layout Errors in Small Bore Piping

One common mistake in small-bore piping is failing to account for "Thread Engagement." When you calculate the length of a pipe between two threaded elbows, you must add the length of the thread that will be screwed into the fitting. Without this, your pipe will be too short. To eliminate these errors and speed up your fabrication, the PipeFit Pro mobile app provides instant cut-length calculations that account for thread engagement for both NPT and BSPT standards, ensuring your spools fit perfectly every time.

Conclusion

Whether you are working with NPT or BSPT, a deep understanding of threaded pipe fitting standards is essential for any professional fitter. By identifying the thread angle, correctly applying sealants, and accounting for engagement length, you can build piping systems that stand up to high-pressure demands without a single drop of leakage. Always check your site specifications and never mix your thread standards.
