Pipe Schedule Chart and Wall Thickness: The Ultimate Guide

Decoding Pipe Schedule and Wall Thickness

In the industrial piping industry, the term "Schedule" (often abbreviated as Sch) is the most common way to describe the wall thickness of a pipe. For a pipefitter or engineer, understanding a pipe schedule chart is not just about measuring metal; it is about ensuring the system can safely contain the pressure and temperature of the fluid inside. This guide breaks down the relationship between Nominal Pipe Size (NPS), Outer Diameter (OD), and Wall Thickness (WT) to help you make professional field decisions.

Featured Snippet: Common Pipe Schedule Multipliers

While there are many schedules (5, 10, 40, 80, 160, XXS), these are the most common ones you will encounter on a standard industrial site:

Schedule Name	Thickness Reference	Pressure Suitability
Schedule 40	Standard (STD)	Standard Industrial Utility
Schedule 80	Extra Strong (XS)	High Pressure / Corrosive
Schedule 160	Very Heavy Wall	Extremely High Pressure (Pumps)
Sch XXS	Double Extra Strong	Extreme Pressure / Hydraulic

1. The NPS vs. OD Confusion

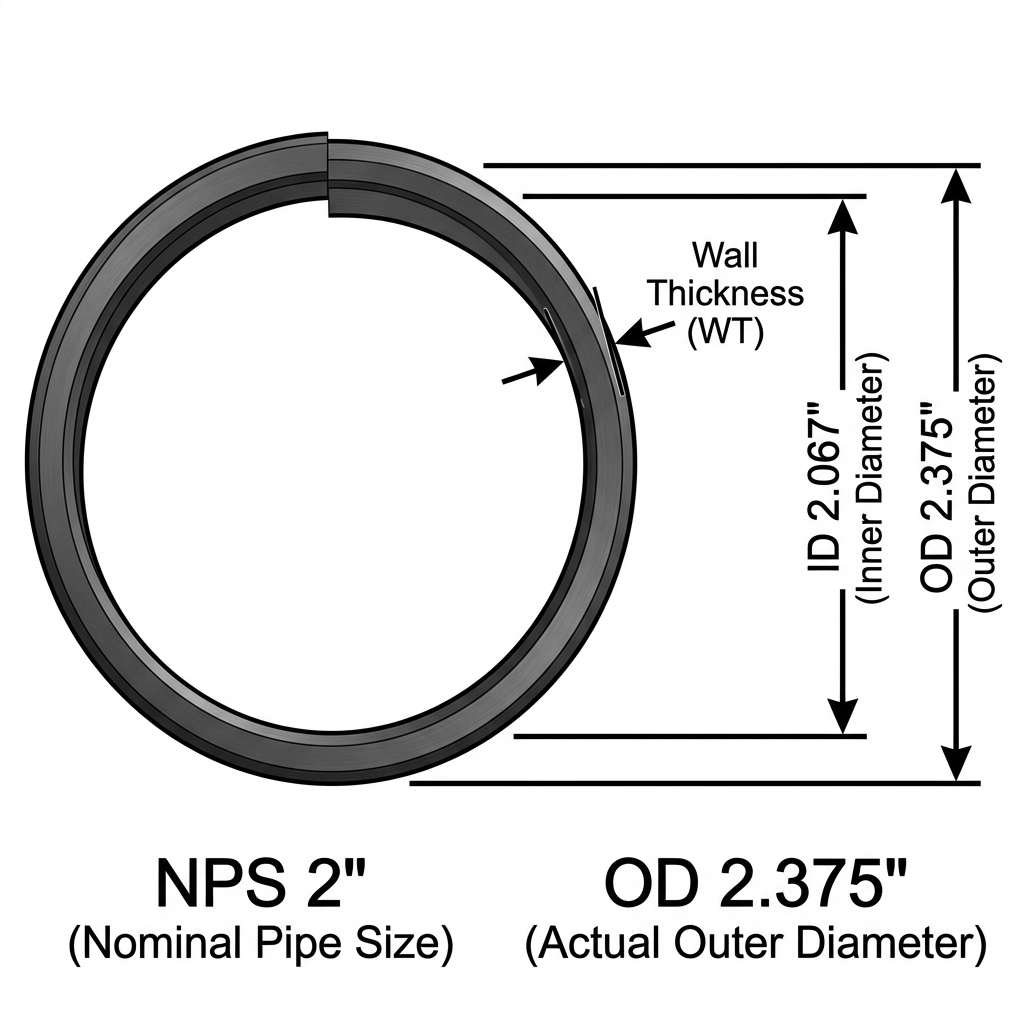

One of the first lessons in piping geometry is that the Nominal Pipe Size (NPS) does not represent the actual diameter of the pipe for sizes below 14 inches. For example, a 2-inch NPS pipe actually has an Outer Diameter (OD) of 2.375 inches. As the Pipe Schedule increases, the Outer Diameter stays constant while the wall thickness grows inward, reducing the Internal Diameter (ID). This allows for standardized fittings and flanges to work across different schedules of the same nominal size.

2. How Schedule Affects Fabrication

When we transition from Schedule 40 to Schedule 80, the pipe becomes significantly heavier and harder to weld. A thicker wall requires more "v-groove" preparation and more weld passes (filler metal) to complete a joint. Furthermore, the reduced Internal Diameter must be accounted for in flow calculations. If a system is designed for a specific flow rate based on Sch 40 ID, accidentally installing Sch 80 pipe will create a restriction and increase the velocity of the fluid, potentially leading to erosion or vibration issues.

3. Material Considerations: Carbon vs. Stainless

It is important to note that pipe schedules apply differently depending on the material. Carbon steel follows the standard Sch 40/80/160 system. Stainless steel, however, uses an "S" suffix (e.g., Sch 10S, Sch 40S). These stainless schedules are governed by ASME B36.19M and often have slightly different wall thicknesses than their carbon steel counterparts (ASME B36.10M). Always verify your material spec before ordering material or beginning fabrication to avoid mixing incompatible wall thicknesses.

4. Speed Up Your Field Reference

In the field, you don't always have a physical pipe schedule chart book in your pocket. Calculating weights, internal diameters, and pressure ratings manually is slow and risks error. Professional pipefitters now rely on digital tools to get instant data. Apps like PipeFit Pro include a comprehensive database of all ASME pipe schedules, allowing you to instantly find the OD, ID, and wall thickness for any pipe size from 1/8" up to 48". This ensures your fit-ups are always within code and your pressure ratings are guaranteed.

Conclusion

Mastering the nuances of pipe schedule and wall thickness is a prerequisite for advanced industrial work. By understanding that the OD is king and the ID fluctuates with the schedule, you can predict flow characteristics and fabrication challenges before they even arise. Stay accurate, respect the pressure ratings, and always double-check your wall thickness with a caliper before you strike an arc.
