Pipe Elbow Take-off Calculation: The Advanced Fitter's Guide

Mastering the Pipe Elbow Take-off Calculation

In the precision-driven world of pipefitting, "close enough" is never enough. When you are fabricating a piping spool, the most critical dimension you encounter is the distance from the center of the fitting to its face. This dimension is known as the take-off. Mastering the pipe elbow take-off calculation is the hallmark of an advanced fitter, ensuring that every cut is exact and every weld gap is perfect. This guide will teach you the mathematical secrets to calculating take-offs for any degree of elbow, from 90° down to custom mitered cuts.

Featured Snippet: Standard Take-off Formulas

For standard long-radius (LR) elbows, use these fast-acting formulas to determine your take-off on the fly:

Elbow Degree	Formula (Inches)	Example (12" NPS)
90-Degree LR	1.5 × Nominal Pipe Size	1.5 × 12 = 18"
45-Degree LR	0.625 × Nominal Pipe Size	0.625 × 12 = 7.5"
90-Degree SR	1.0 × Nominal Pipe Size	1.0 × 12 = 12"

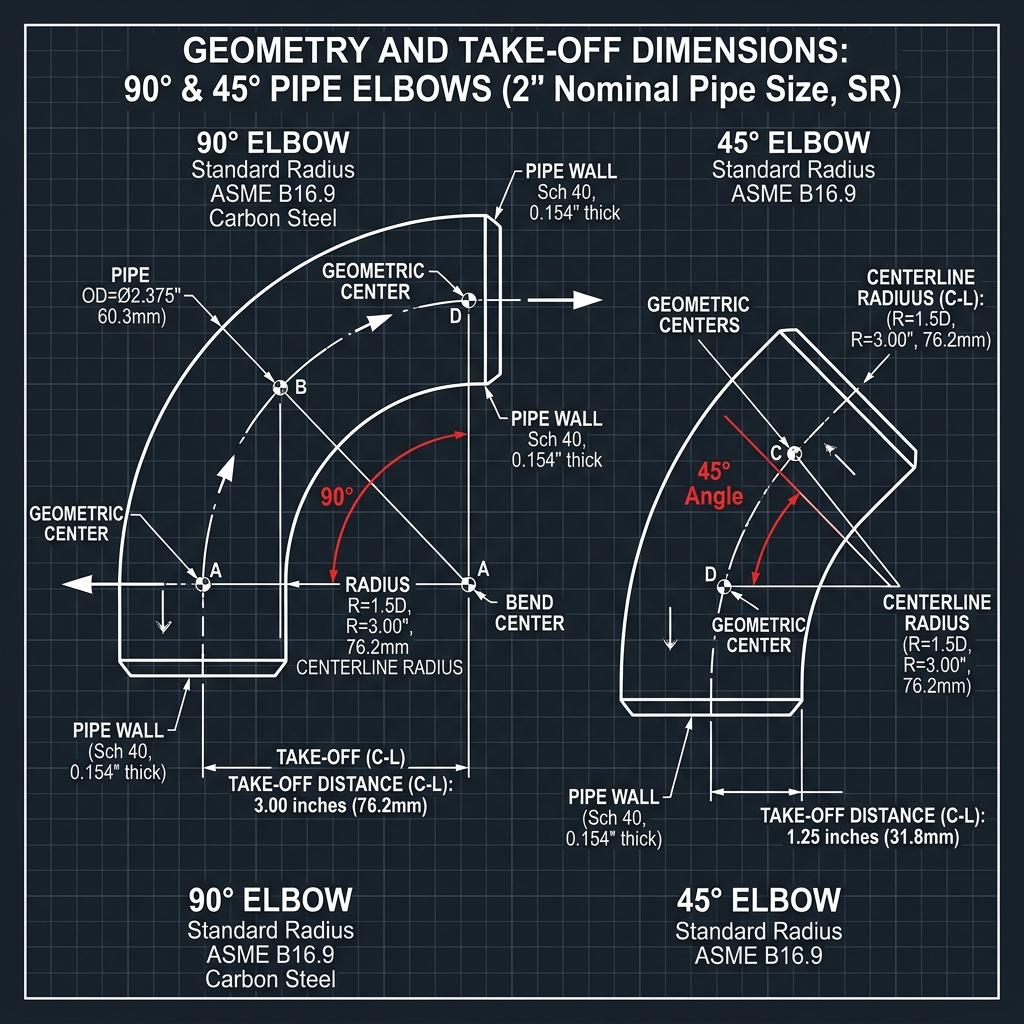

1. The Geometry of the Take-off

To understand why we use these multipliers, you have to look at the geometry. A 90-degree long-radius elbow has a radius equal to 1.5 times the nominal pipe size (NPS). Therefore, the distance from the center point of the bend to the face (the take-off) is exactly 1.5D. For a 45-degree elbow, the calculation involves trigonometry, specifically the Tangent of half the angle. The multiplier 0.625 is a rounded industrial shortcut for the precise trigonometric result of $( \tan(22.5^\circ) \times 1.5 )$.

2. Calculating Any Degree Elbow Take-off

What happens when you encounter a custom angle, like a 30-degree or a 60-degree bend? You cannot rely on shortcuts. You must use the universal pipe elbow take-off calculation formula:

Take-off = Tan(Angle / 2) × Radius

For a Long Radius (LR) pipe: Radius = 1.5 × NPS For a Short Radius (SR) pipe: Radius = 1.0 × NPS

Example: To find the take-off for a 60-degree, 10-inch LR elbow:

1. Step 1: Divide the angle by 2 (60 / 2 = 30°).
2. Step 2: Find the Tan of 30° (~0.577).
3. Step 3: Calculate the Radius (1.5 × 10 = 15").
4. Step 4: Multiply 0.577 × 15 = 8.655 inches.

3. Taking Off for Welded Joints

As a professional, you never cut your pipe to the exact length shown on the blueprint without considering the weld gap. Standard industrial practice leaves a 1/8" (3mm) gap between the pipe and the fitting to allow for full-penetration welding. When calculating your true cut length, subtract the take-off from the center-to-center dimension, and then subtract the thickness of that weld gap. Neglecting the weld gap across multiple fittings in a long run can result in a piping system that is several inches longer than designed.

4. Digital Precision over Manual Math

While knowing the manual math is essential for accreditation and "old school" respect, the modern field demands speed. Manual calculation, especially with decimals and trig functions on a windy job site, is prone to human error. To ensure 100% accuracy and keep your fabrication timeline tight, advanced fitters now use specialized software. Mobile apps like PipeFit Pro automate these pipe elbow take-off calculations instantly, providing cut lengths and take-offs for any pipe size and any custom degree with a single tap.

Conclusion

The ability to accurately calculate take-offs differentiates a basic helper from a master pipefitter. By memorizing the 1.5D rule for 90s and understanding the tangent-based math for custom angles, you ensure that every spool piece you build is a testament to precision engineering. Keep your calculator close, but keep your understanding of geometry even closer.
