TIG Welding Basics for Pipefitters: Step-by-Step Guide

Introduction to TIG Welding in Pipefitting

For most industrial pipefitters, Gas Tungsten Arc Welding (GTAW), commonly known as TIG, is the pinnacle of the craft. It provides the highest quality, most aesthetically pleasing, and structurally sound welds required for high-pressure systems. Mastering tig welding basics is not just about having a steady hand; it involves a deep understanding of metallurgy, gas shielding, and electrical precision. This technical guide breaks down the core fundamentals of TIG welding for piping applications.

Featured Snippet: Tungsten Electrode Color Codes

Selecting the right tungsten electrode is the first step in successful TIG welding. Use this color-coded chart to choose the correct electrode for your material:

Tip Color	Material Type	Best For
Red	2% Thoriated	Carbon & Stainless Steel
Green	Pure Tungsten	Aluminum Alloys
Gold	1.5% Lanthanated	Universal Applications
Grey	2% Ceriated	Low-amperage AC/DC

1. Mastering the TIG Torch and Tungsten Prep

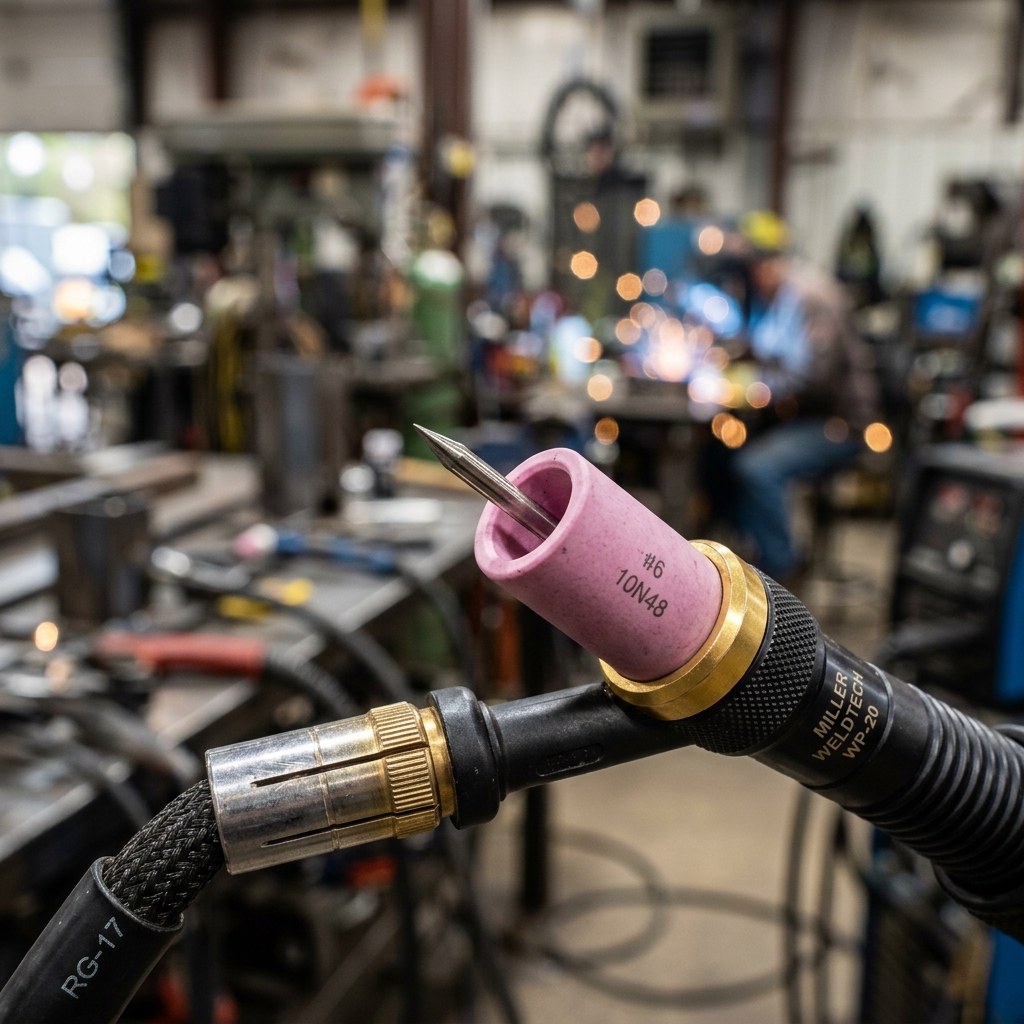

Precision welding starts with your electrode preparation. Your tungsten must be ground to a needle-sharp point, with the grind marks running longitudinal (parallel to the electrode) rather than circular. This ensures the arc remains stable and focused. When setting your tungsten stick-out from the ceramic cup, a general rule of thumb is to keep it equal to the diameter of the tungsten itself. This provides optimal gas coverage while maintaining arc control in tight piping configurations.

2. Shielding Gas and Flow Rates

TIG welding is impossible without proper shielding. Pure Argon is the standard choice for most pipefitting tasks. The shielding gas protects the molten weld pool from atmospheric contamination (oxygen and nitrogen). For a standard pipe root pass, a flow rate of 15 to 20 Cubic Feet per Hour (CFH) is typically recommended. If you are welding indoors with minimal drafts, you can lower this, but outdoor or high-ventilation shop environments may require a gas lens to maintain a laminar flow of argon over the joint.

3. Heat Management and Amperage Selection

One of the most common mistakes in learning tig welding basics is using too much heat too quickly. Pipe walls are often thinner than structural beams, meaning heat sink management is critical. On a standard 2-inch stainless steel pipe (Sch 40), you might start your amperage around 90-110 amps for the root pass. Always use a remote foot pedal or torch-mounted amperage control to taper off your heat at the end of a weld to prevent "crater cracks," which are common failure points in high-pressure piping inspections.

4. Coordination: The Three-Point Balance

Elite TIG welding require incredible coordination between three elements: the torch hand (holding the arc gap), the filler rod hand (adding material), and the foot (controlling heat). The filler rod should always be kept within the argon gas envelope, even when not actively dipping it into the pool. If the tip of your rod oxidizes, it will introduce porosity into your weld. For complex layout math before you even strike an arc, remember that tools like PipeFit Pro can help you verify your fit-up angles and offsets, ensuring that your weld joints are perfectly aligned and ready for a x-ray quality finish.

Conclusion

Learning the tig welding basics is the first step toward becoming a journeyman pipefitter. It is a slow, methodical process that rewards patience and extreme attention to detail. By mastering your tungsten prep, gas coverage, and hand-eye coordination, you will produce welds that meet the most stringent industrial codes (ASME Section IX). Keep practicing, keep your metal clean, and always strive for that perfect "stack of dimes" appearance.
